Our box-type fully enclosed condensing units adopt top-tier branded hermetic compressors from Emerson, Invotech, Panasonic and other reliable suppliers. Compact box structure enables easy installation and space-saving layout for cold storage, fresh-keeping and refrigeration projects. Optimized finned condenser ensures efficient heat dissipation, stable operation under varied ambient temperatures. Flexible compressor selections cater to different cooling demands and client budget ranges, delivering dependable, low-noise refrigeration performance.

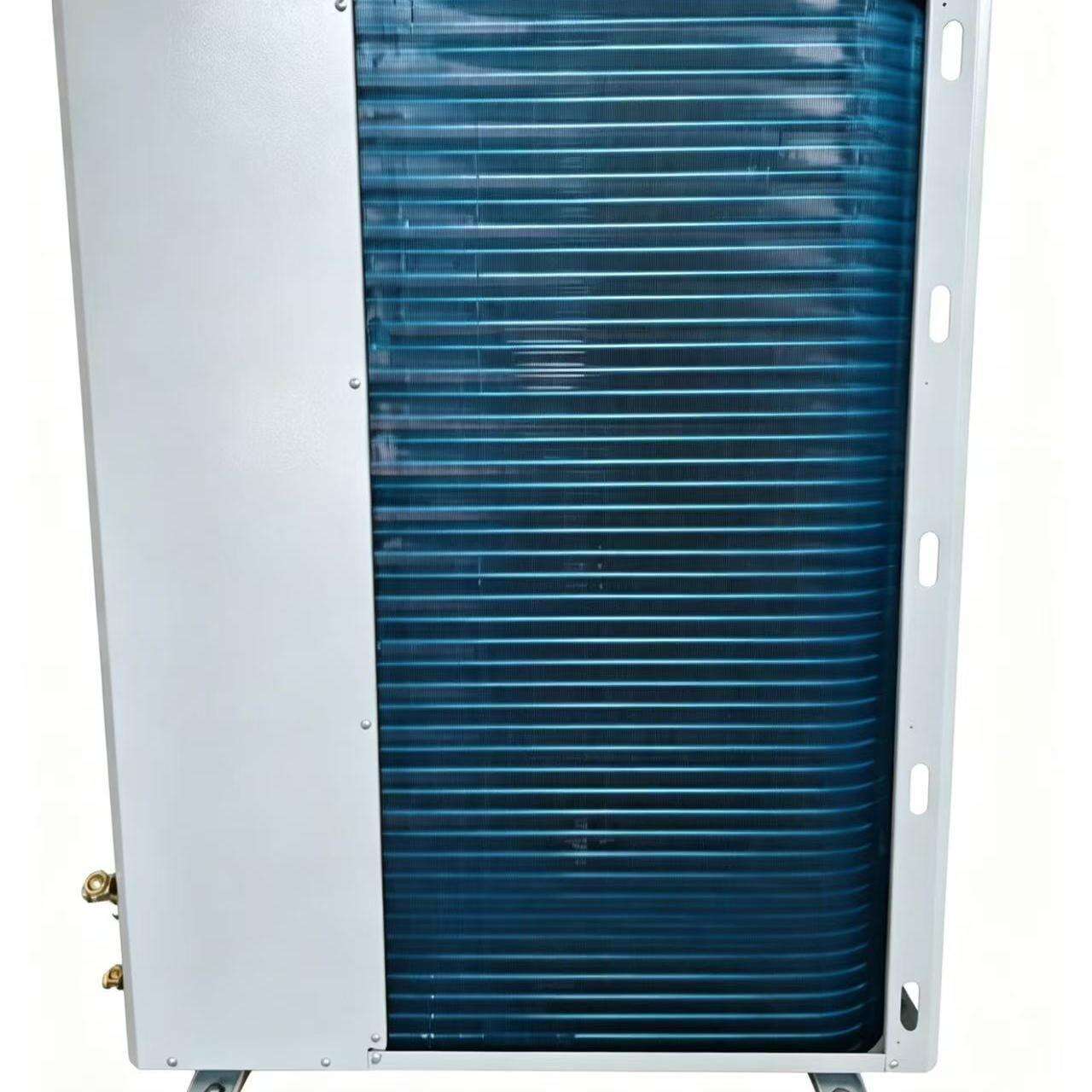

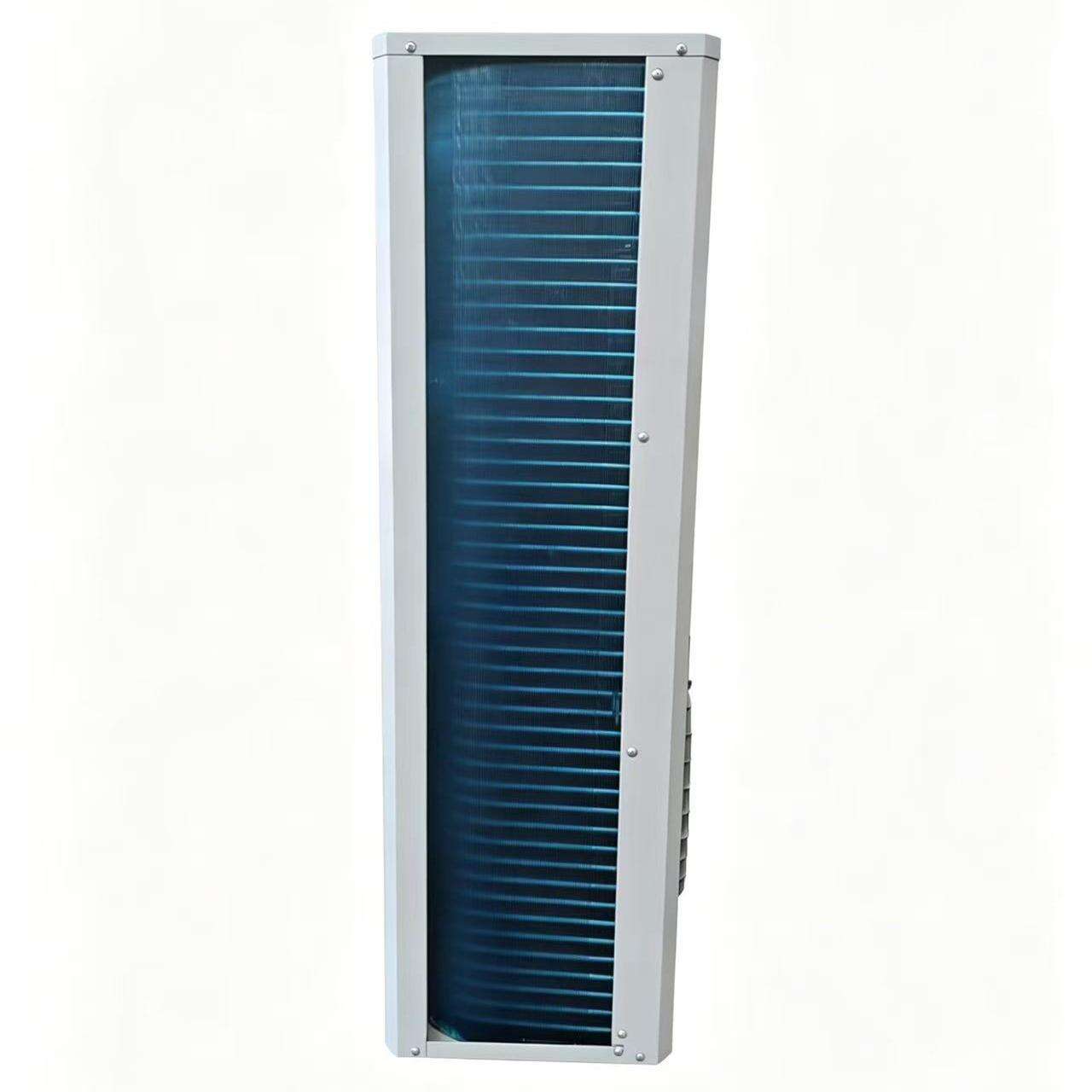

Parameters of 5HP L-type Condensing Unit |
|
Parameter |
Specification |
|
Compressor Model |
YF35E2G-Q100 |
|
Product Origin |
China |
|
Core components |
Motor, compressor |
|
Fan qty*diameter |
2*480mm |
|
Total air volume |
3200*2 m3/h |
|
Total fan power |
0.07*2KW |
Ningbo Lucky Star Import & Export Co., Ltd. is a technology-oriented enterprise dedicated to the development and manufacturing of a full range of cold storage equipment. With over two decades of production and R&D experience, our product line includes finned tube evaporators, air-cooled condensers, and condensing units. We have a professional, dedicated, and customer-oriented team. Relying on a strong supply chain, we can provide you with a full range of accessory products. Adhering to the pursuit of quality, our factory has successively introduced a series of advanced production equipment such as laser cutting machines, CNC turret punch presses, and high-speed automatic punch presses, and has established a complete quality management system, providing an important guarantee for the stability and durability of our products. We are well aware that high-quality service is the key to the continuous development of an enterprise. We strive to improve our service system to ensure customer peace of mind. During the sales process, we offer professional pre-sale consultation, efficient production and logistics services, as well as timely and continuous after-sales technical support. We are reliable suppliers of refrigeration equipment. We look forward to more cooperation with customers at home and abroad.

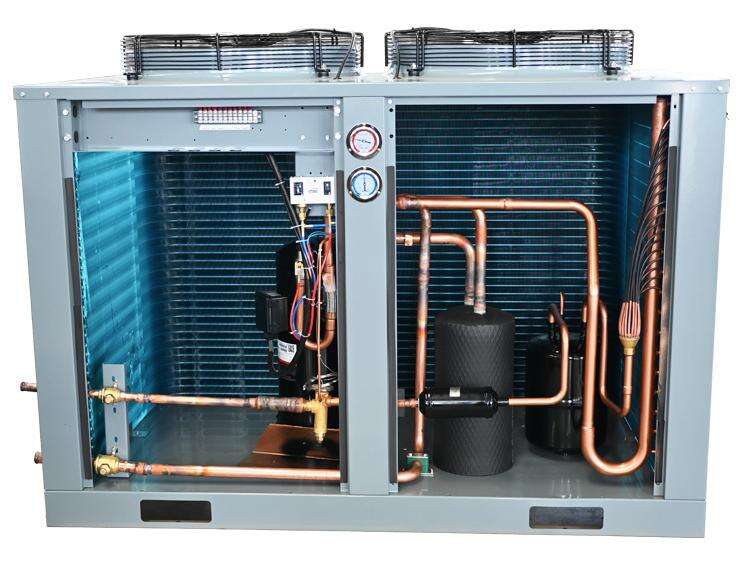

Our fully enclosed box-type condensing units integrate high-precision, energy-efficient condensers with top-grade branded hermetic compressors. The condenser’s fine workmanship brings outstanding heat exchange efficiency, cutting power consumption remarkably to realize evident energy-saving effect.
Boasting compact cabinet layout, the unit is space-efficient and quick to mount, perfectly adaptable to cold storage, food preservation and various large refrigeration projects. Diversified compressor options flexibly fit distinct cooling capacities and budget plans.
With stable mechanical structure and rigorous production inspection, it runs durably amid fluctuating ambient temperatures, featuring low vibration and quiet operation. Superior all-round quality makes it a mainstream pick for medium & large refrigeration working scenarios worldwide.
Parameters of 3HP L-type Condensing Unit |
|
Low-temperature temperature air cooling （Refrigerant：R404a) |
Power supply |
Te:-40℃,Tc:45℃ | Condenser | Connecting pipe | Dimensions（mm) |
Installation dimensions（mm) |
||||||||||
| Compressor mode | Horsepower（HP) | Voltage (V) |
Cooling capacity(KW) |
Operating power(KW) |
Model | Number of fans | Fan diamete（mm) |
Total air volume（m3/h) |
Total fan power（KW)) |
Gas pipe |
Liquid pipe |
Length | Width | Height | Length | Width |
| YF20E2G-Q102 | 3 | 220 | 2.34 | 2.17 | L-3 | 1 | 480 | 3200 | 0.07 | 16 | 10 | 956 | 364 | 785 | 725 | 386 |
| YF20E1G-Q100 | 3 | 380 | 2.4 | 2.6 | L-3 | 1 | 480 | 3200 | 0.07 | 16 | 10 | 956 | 364 | 785 | 725 | 386 |
| YF29E2G-QQ100 | 4 | 220 | 3.55 | 2.98 | L-4 | 1 | 480 | 3200 | 0.07 | 16 | 10 | 956 | 364 | 785 | 725 | 386 |
| YF29E1G-Q100 | 4 | 380 | 3.55 | 2.89 | L-4 | 1 | 480 | 3200 | 0.07 | 16 | 10 | 956 | 364 | 785 | 725 | 386 |
| YF35E2G-Q100 | 5 | 220 | 4.21 | 3.48 | L-5 | 2 | 480 | 3200*2 | 0.07*2 | 19 | 12 | 956 | 364 | 1240 | 725 | 386 |
| YF35E1G-Q100 | 5 | 380 | 4.5 | 3.5 | L-5 | 2 | 480 | 3200*2 | 0.07*2 | 19 | 12 | 956 | 364 | 1240 | 725 | 386 |
| YF41E1G-Q100 | 6 | 380 | 5.2 | 3.9 | L-6 | 2 | 480 | 3200*2 | 0.07*2 | 19 | 12 | 956 | 364 | 1240 | 725 | 386 |
| YF56E1G-Q100 | 8 | 380 | 6.8 | 5.1 | 80U | 2 | 450 | 5390*2 | 0.25*2 | 28 | 16 | 1370 | 760 | 1100 | 725 | 725 |
| YF72E1G-Q100 | 10 | 380 | 9 | 6.9 | 100U | 2 | 450 | 5390*2 | 0.25*2 | 28 | 16 | 1340 | 760 | 900 | 870 | 725 |
| YF80EE1G-Q100 | 12 | 380 | 10.48 | 7.61 | 120U | 2 | 450 | 5390*2 | 0.25*2 | 28 | 16 | 1440 | 790 | 1100 | 970 | 755 |
|
Medium-high temperature air cooling （Refrigerant：R404a) |
Power supply |
Te:-30℃,Tc:45℃ | Condenser | Connecting pipe | Dimensions（mm) |
Installation dimensions（mm) |
||||||||||
| Compressor mode | Horsepower（HP) | Voltage (V) |
Cooling capacity(KW) |
Operating power(KW) |
Model | Number of fans | Fan diamete（mm) |
Total air volume（m3/h) |
Total fan power（KW)) |
Gas pipe |
Liquid pipe |
Length | Width | Height | Length | Width |
| YM49E2G-100 | 3 | 220 | 5.14 | 2.27 | L-3 | 1 | 480 | 3200 | 0.07 | 16 | 10 | 956 | 364 | 785 | 725 | 386 |
| YM49E1G-100 | 3 | 380 | 5.56 | 2.32 | L-3 | 1 | 480 | 3200 | 0.07 | 16 | 10 | 956 | 364 | 785 | 725 | 386 |
| YM70E2G-100 | 4 | 220 | 7.52 | 3.38 | L-4 | 1 | 480 | 3200 | 0.07 | 16 | 10 | 956 | 364 | 785 | 725 | 386 |
| YM70E1G-100 | 4 | 380 | 7.52 | 3.32 | L-4 | 1 | 480 | 3200 | 0.07 | 16 | 10 | 956 | 364 | 785 | 725 | 386 |
| YM86E2G-100 | 5 | 220 | 9.24 | 4.17 | L-5 | 2 | 480 | 3200*2 | 0.07*2 | 19 | 12 | 956 | 364 | 1240 | 725 | 386 |
| YM86E1G-100 | 5 | 380 | 9.24 | 3.99 | L-5 | 2 | 480 | 3200*2 | 0.07*2 | 19 | 12 | 956 | 364 | 1240 | 725 | 386 |
| YM102E1G-100 | 6 | 380 | 10.96 | 4.74 | L-6 | 2 | 480 | 3200*2 | 0.07*2 | 19 | 12 | 956 | 364 | 1240 | 725 | 386 |
| YM132E1G-100 | 8 | 380 | 14.18 | 6.08 | 80U | 2 | 450 | 5390*2 | 0.25*2 | 28 | 16 | 1370 | 760 | 1100 | 905 | 725 |
| YM182E1G-100 | 10 | 380 | 19.55 | 8.27 | 100U | 2 | 450 | 5390*2 | 0.25*2 | 28 | 16 | 1340 | 760 | 900 | 870 | 725 |
| YM210E1G-100 | 12 | 380 | 22.56 | 9.46 | 120U | 2 | 450 | 5390*2 | 0.25*2 | 28 | 16 | 1440 | 790 | 1100 | 970 | 755 |
| YM240E1G-100 | 15 | 380 | 25.6 | 11 | 150U | 2 | 550 | 8850*2 | 0.25*2 | 28 | 16 | 1440 | 890 | 1100 | 970 | 855 |
| YM280E1G-100 | 20 | 380 | 28.3 | 12.7 | 200U | 2 | 600 | 10850*2 | 0.6*2 | 35 | 16 | 1640 | 895 | 1230 | 970 | 860 |
Box type condensing unit is mainly developed for commercial and supermarket applications
1-year warranty,technical support.
Strength factory

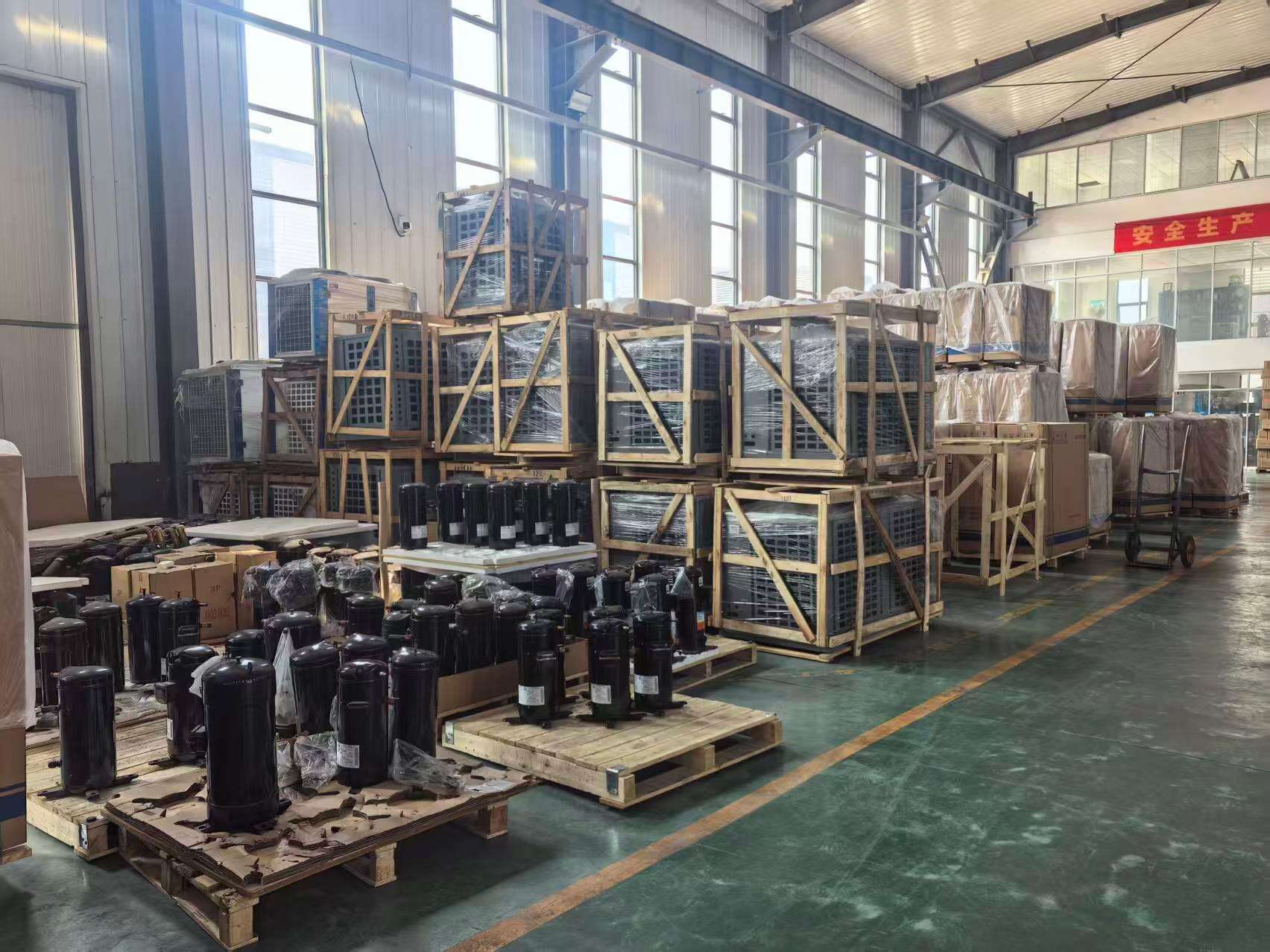

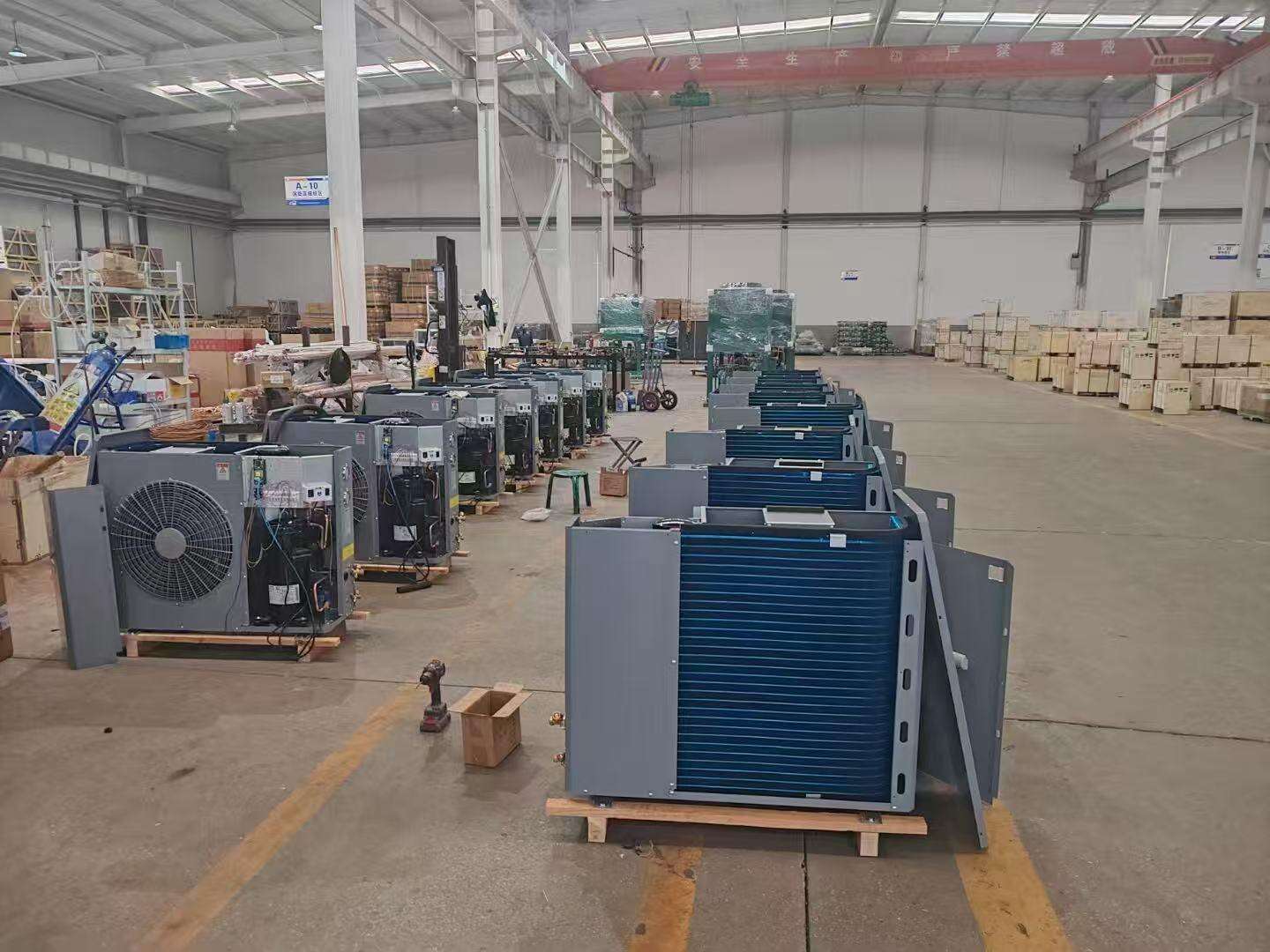

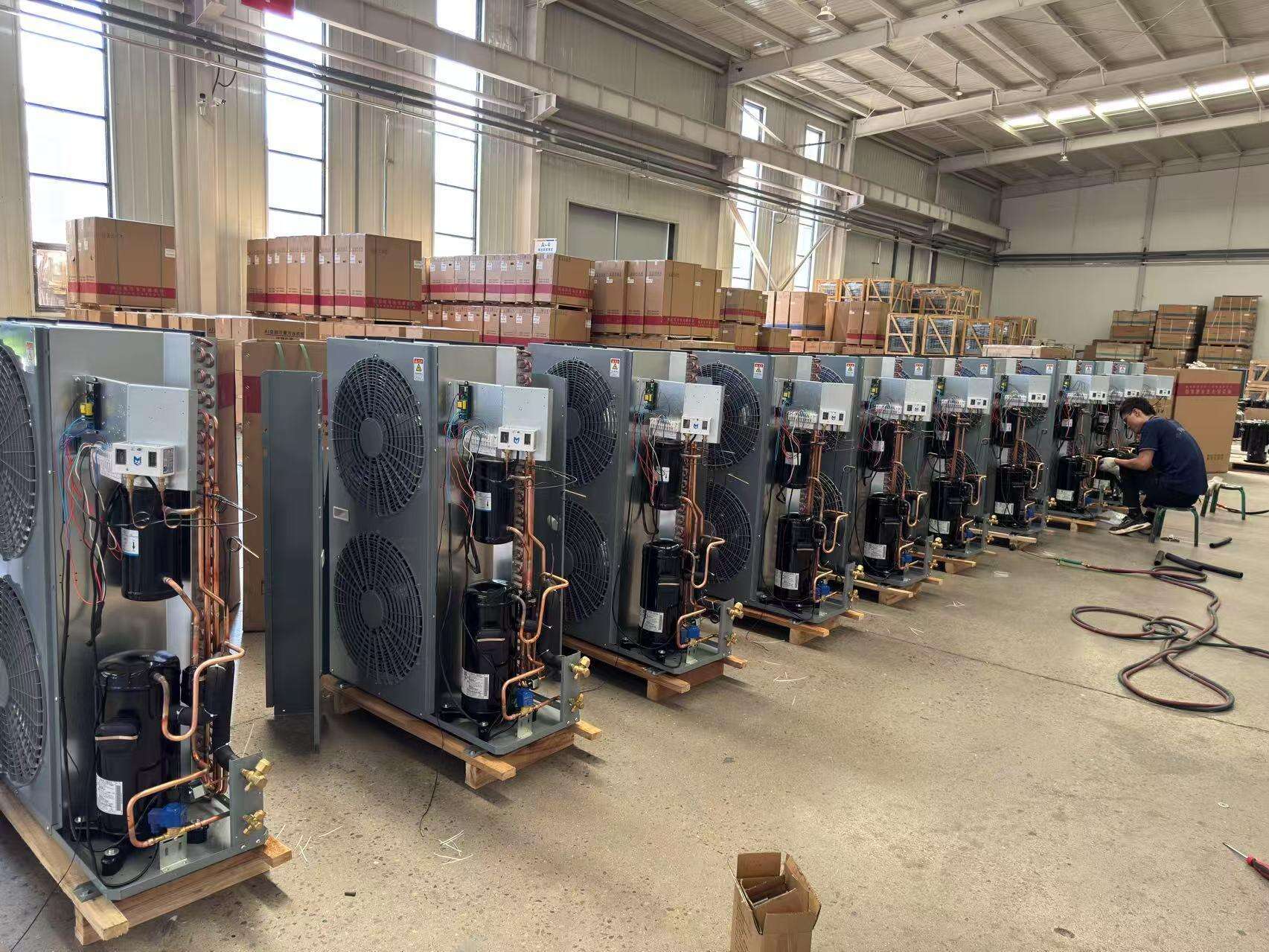

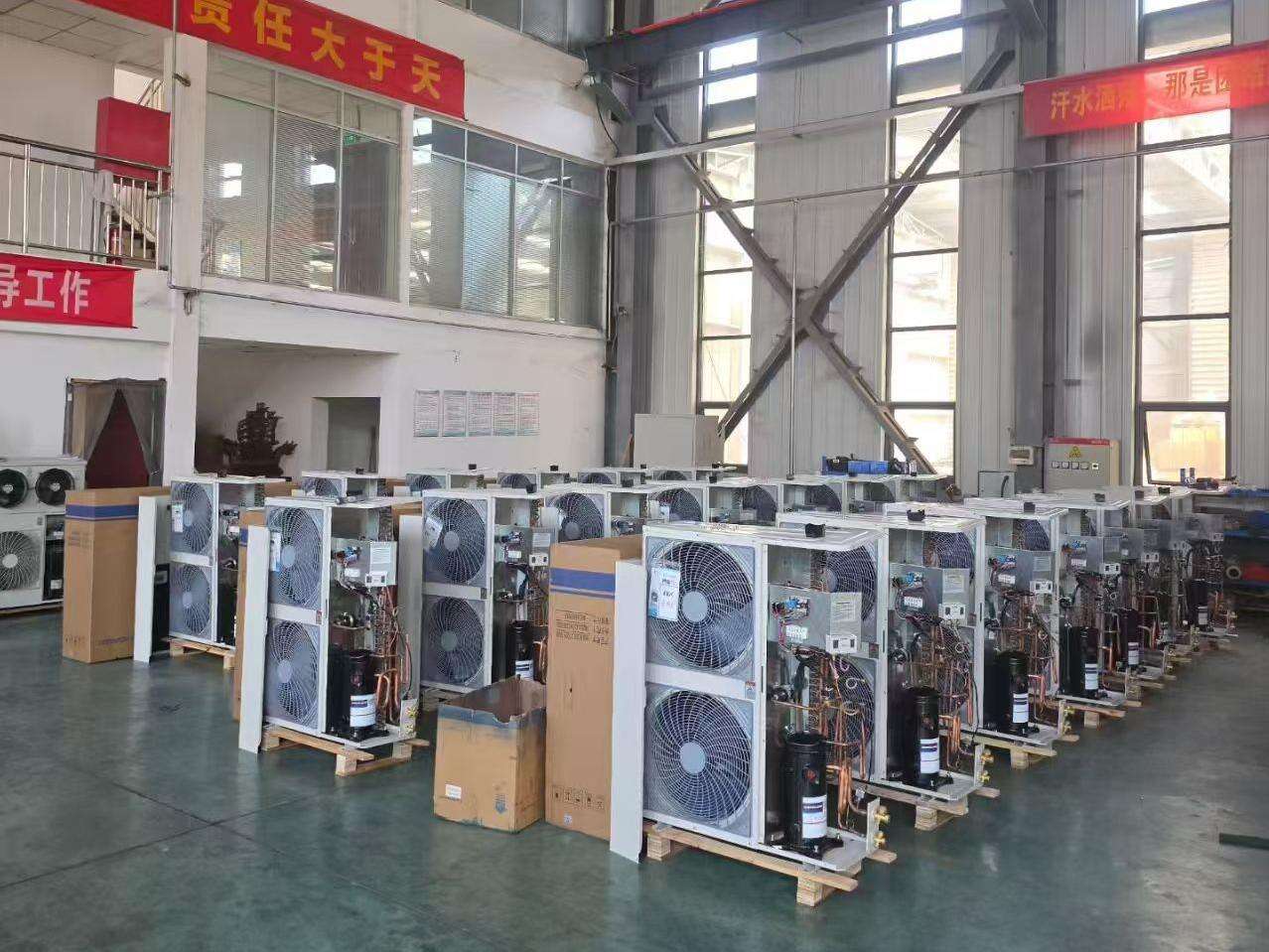

Dust-free workshop with clean environment to ensure quality
Provide customers with overall customization services from R&D, design to production.
OEM/ODM
We can work out customized drawings in short time!
Quality control
Multiple quality testing, quality assurance
On-time delivery
Work with multiple multinational logistics companies to ensure fast/safe delivery of products.
What type of company is it?
Our company is a comprehensive industrial and trade enterprise. We have our own factory, R&D team.
What are your company's main products?
Our main products: air-cooler,condensing unit,condensor,etc.
Can I put my logo?
Of course. we accept OEM and ODM.
Can you customize the product according to our specific requirements?
As long as you provide specific information, we can offer specific solutions. It would be better if you could provide the design drawings.
How can we guarantee quality?
Always a pre-production sample before mass production,always final Inspection and passed machine testing before shipment.
