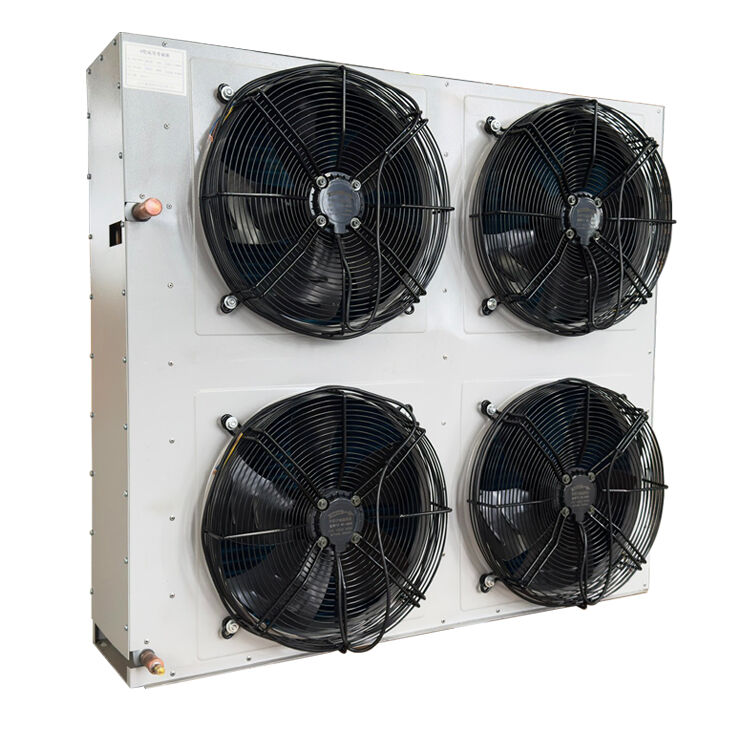

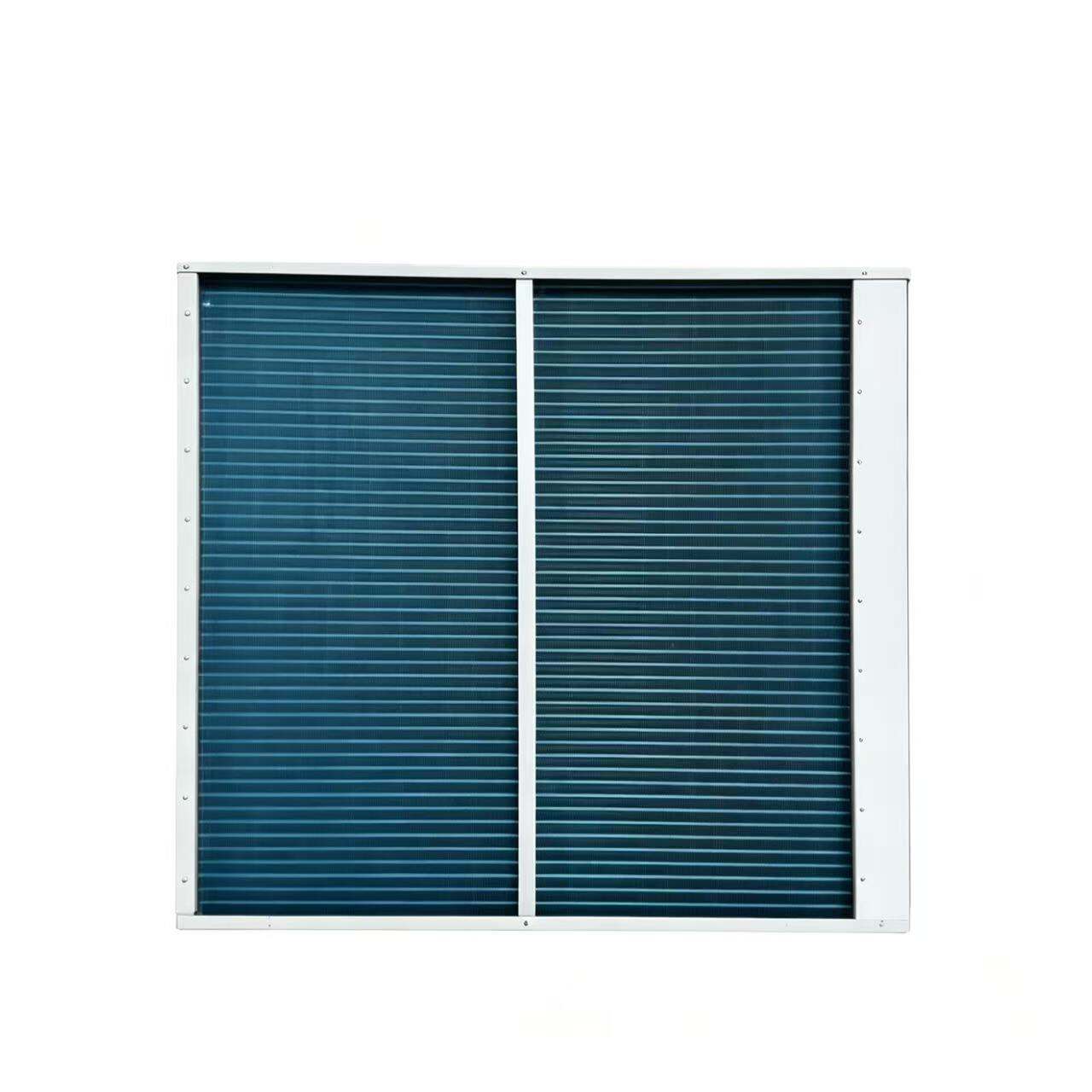

Air Cooled H100 H-type Condenser

These high-performance condensers feature precision-engineered manufacturing, delivering outstanding heat exchange efficiency and significant long-term energy savings. Boasting a compact footprint, versatile design, and proven reliable build quality, they ensure consistently stable, low-maintenance, and long-lasting performance, making them the ideal choice for demanding, large-scale industrial and commercial refrigeration applications.


  Parameters of H Series Air Coolers

Model H100
Product Origin China
Material Metal, Aluminum Alloy, Copper
Heat Exchange Capacity 30 KW
Fan Qty *Diameter 4*400mm
Motor Power 720W
Inlet And Outlet Pipe Diameter 25/22mm

Product Video

Company Profile

Ningbo Lucky Star Import & Export Co., Ltd. is a technology-oriented enterprise dedicated to the development and manufacturing of a full range of cold storage equipment. With over two decades of production and R&D experience, our product line includes finned tube evaporators, air-cooled condensers, and condensing units. We have a professional, dedicated, and customer-oriented team. Relying on a strong supply chain, we can provide you with a full range of accessory products. Adhering to the pursuit of quality, our factory has successively introduced a series of advanced production equipment such as laser cutting machines, CNC turret punch presses, and high-speed automatic punch presses, and has established a complete quality management system, providing an important guarantee for the stability and durability of our products. We are well aware that high-quality service is the key to the continuous development of an enterprise. We strive to improve our service system to ensure customer peace of mind. During the sales process, we offer professional pre-sale consultation, efficient production and logistics services, as well as timely and continuous after-sales technical support. We are reliable suppliers of refrigeration equipment. We look forward to more cooperation with customers at home and abroad.

Core Advantages

Our H-type condensers adopt a symmetrical layout with an extended airflow path, enabling even and adequate heat exchange to maintain steady refrigeration efficiency. Featured with anti-corrosion and anti-vibration piping, the equipment boasts excellent pressure resistance, low failure rate and dependable long-term operation. It is well suited for systems with large cooling capacity and can be customized for cold storage, industrial refrigeration and large-scale refrigeration units. Thanks to its open structure, the condenser allows easy cleaning and routine maintenance. It also comes with long service life and outstanding cost performance, making it a highly practical and cost-effective choice for various large refrigeration projects.

  Parameters of High-efficiency Condenser H-type

Model Length (mm) Width (mm) Height (mm) Number of motors (units) * diameter (mm) Motor Power Inlet & Outlet Pipe Diameter (mm)
H49 1125 250 519 2*400 360W 19 / 16
H60 1175 250 603 2*450 500W 22 / 19
H80 1405 250 645 2*500 840W 25 / 19
H100 1145 250 1023 4*400 720W 25 / 22
H120 1195 250 1191 4*400 720W 25 / 22
H140 1375 250 1191 4*450 1000W 28 / 22
H160 1525 250 1191 4*450 1000W 32 / 25
H180 1425 250 1443 4*500 1680W 32 / 25
H200 1625 250 1443 4*500 1680W 32 / 25
H300 2705 395 1291 6*500 2520W 50 / 28

  Parameters of High-efficiency Condenser V-type

Model Length (mm) Width (mm) Height (mm) Number of motors (units)* diameter (mm) Motor Power Inlet & Outlet Pipe Diameter (mm)
V160 1750 960 950 2*500 840W 22 / 35
V180 1950 960 950 2*550 1000W 22 / 35
V200 2050 960 950 2*550 1000W 22 / 35
V220 1750 960 950 2*600 1600W 22 / 35
V240 1950 960 950 2*600 1600W 22 / 35
V260 2050 960 950 2*600 1600W 22 / 35
V280 2200 960 950 2*600 1600W 22 / 35
V300 2330 960 950 3*550 1500W 22 / 35
V320 2460 960 950 3*600 2400W 22 / 38
V350 2700 960 950 3*600 2400W 22 / 38
V380 2900 960 950 3*600 2400W 22 / 38
V400 3050 960 950 3*600 2400W 28 / 42
V450 3350 960 950 4*600 3200W 28 / 42
V500 3350 960 1000 4*600 3200W 28 / 42

Product Image

bf9822d443ed1876f307ce3fb309110b (1).jpgd22b1450957c9d2569bb40fd828150fc (1).jpgd3811cc8e1b44817caff701f1a9cfc46 (1).jpg微信图片_20250326092739 (1).jpg9964f2b37f3b283553f907aa0a3beb36.jpgab8c722ac72707cdcffce6e91ce00428 (1).jpge2bbd9e2e5d6f4264df61232518b4fa7.jpg

Successfull cold storage case

chicken cold room.jpgflowers cold room.jpgfruit cold room.jpgmeat cold room.jpgsausage cold room.jpgsea food cold room.jpg

Logistics transportation

Logistics transportation (1).jpgLogistics transportation (2).jpgLogistics transportation (3).jpgLogistics transportation (4).jpgLogistics transportation.jpgLogistics transportation (6).jpgLogistics transportation (7).jpgLogistics transportation (8).jpg

Exhibition

Exhibition (1).jpgExhibition (2).jpgExhibition (3).jpgExhibition (4).jpgExhibition (5).jpgExhibition (7).jpgExhibition (8).jpgExhibition (9).jpgExhibition (10).jpg

Applications

Condenser is suitable for commercial, industrial and large-scale cooling applications.

Service & Support

1-year warranty,technical support.

Why Choose Us

Strength factory
Dust-free workshop with clean environment to ensure quality
Provide customers with overall customization services from R&D, design to production.
OEM/ODM
We can work out customized drawings in short time!
Quality control
Multiple quality testing, quality assurance
On-time delivery
Work with multiple multinational logistics companies to ensure fast/safe delivery of products.

FAQ

What type of company is it?
Our company is a comprehensive industrial and trade enterprise. We have our own factory, R&D team.
What are your company's main products?
Our main products: air-cooler,condensing unit,condensor,etc.
Can I put my logo?
Of course. we accept OEM and ODM.
Can you customize the product according to our specific requirements?
As long as you provide specific information, we can offer specific solutions. It would be better if you could provide the design drawings.
How can we guarantee quality?
Always a pre-production sample before mass production,always final Inspection and passed machine testing before shipment.
