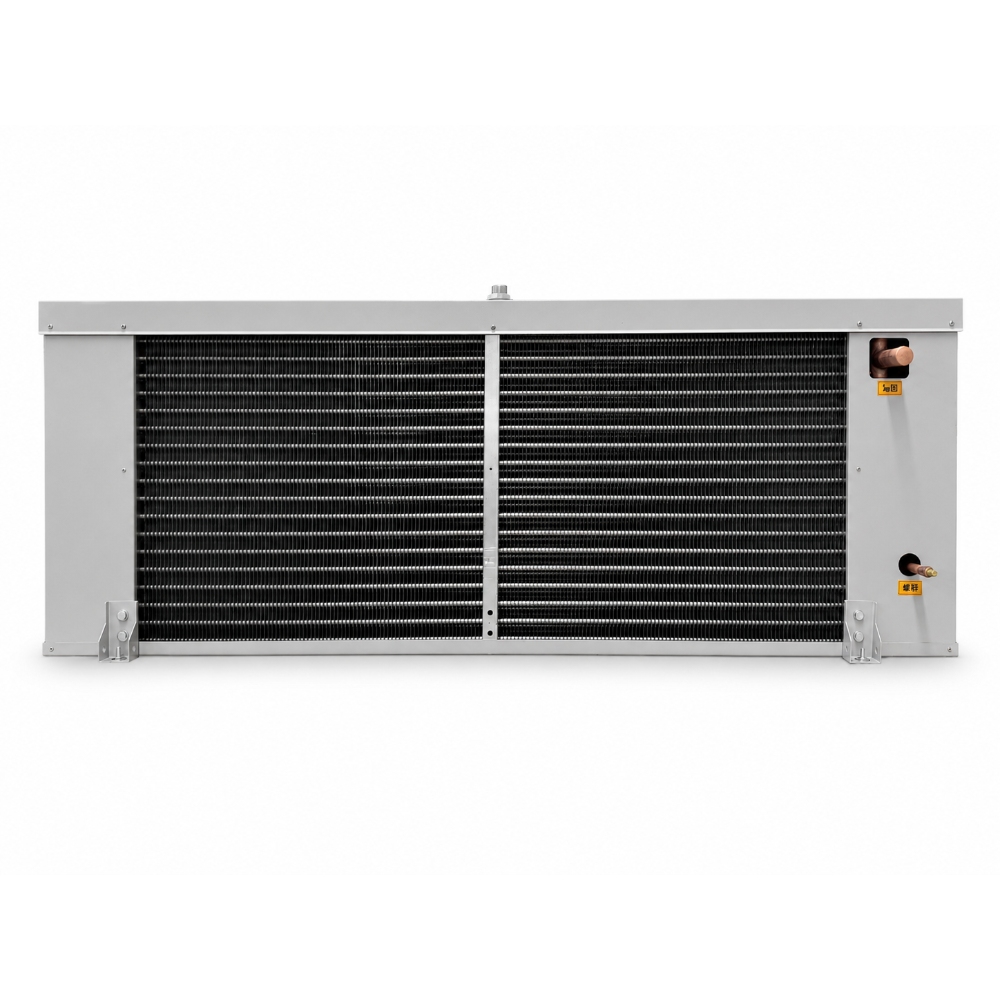

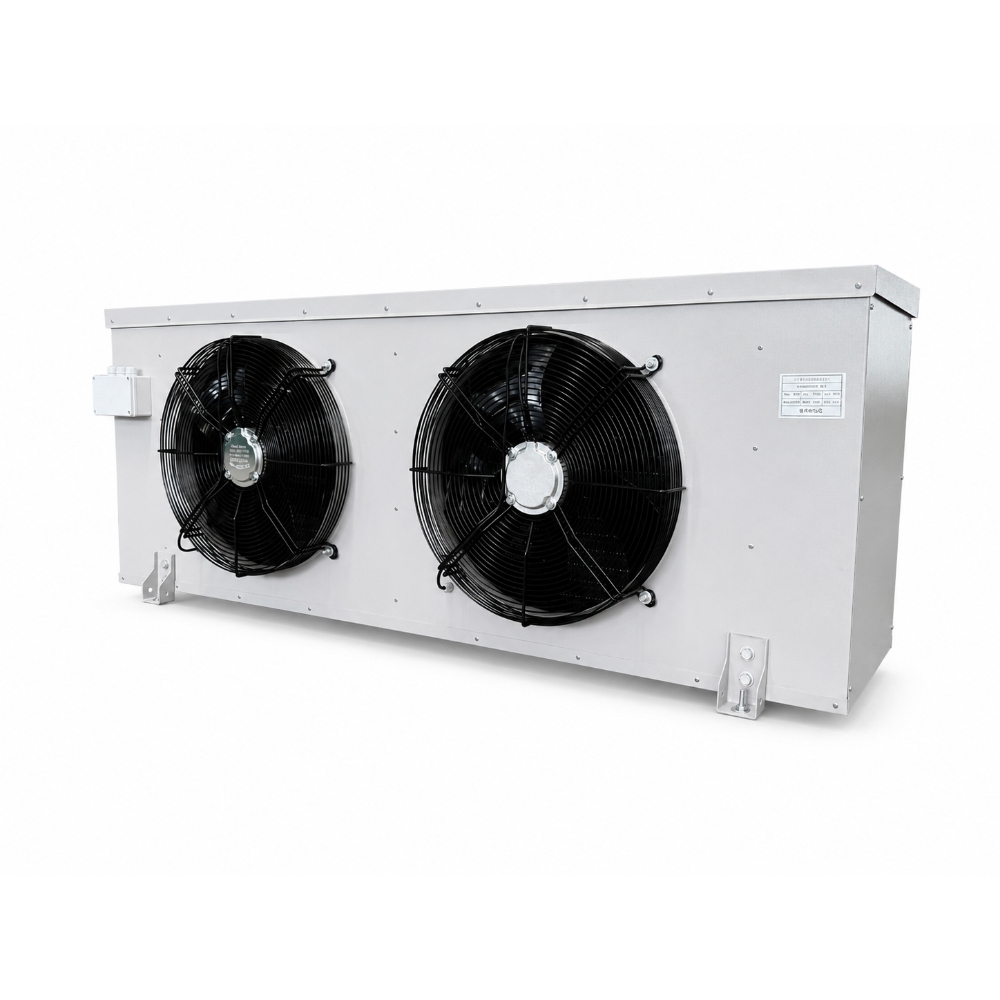

Cold storage air coolers use forced convection, with evaporator coils and fans to absorb heat from the air inside cold rooms. This process lowers and maintains a low-temperature environment. They are available in various configurations for different cooling capacities, suitable for cold storage, food processing rooms, and logistics centers storing fresh and frozen products. Designed for reliable operation in cold chain systems, they are a key component in refrigeration setups.
Parameters of DT Series Air Cooler Evaporator |
|
Parameter |
Specification |
|
Model |
DT30 |
|
Product Origin |
China |
|
Material |
Aluminum Alloy, Copper, Iron |
|
Fan Quantity |
2 |
|
Fan Diameter |
450 mm |
|
Fan Power |
0.455 KW |
|
Defrosting Power |
2.2 KW |
Ningbo Lucky Star Import & Export Co., Ltd. is a technology-oriented enterprise dedicated to the development and manufacturing of a full range of cold storage equipment. With over two decades of production and R&D experience, our product line includes finned tube evaporators, air-cooled condensers, and condensing units. We have a professional, dedicated, and customer-oriented team. Relying on a strong supply chain, we can provide you with a full range of accessory products. Adhering to the pursuit of quality, our factory has successively introduced a series of advanced production equipment such as laser cutting machines, CNC turret punch presses, and high-speed automatic punch presses, and has established a complete quality management system, providing an important guarantee for the stability and durability of our products. We are well aware that high-quality service is the key to the continuous development of an enterprise. We strive to improve our service system to ensure customer peace of mind. During the sales process, we offer professional pre-sale consultation, efficient production and logistics services, as well as timely and continuous after-sales technical support. We are reliable suppliers of refrigeration equipment. We look forward to more cooperation with customers at home and abroad.
Reasonable overall structure brings high heat transfer efficiency and uniform frosting. The product is energy-saving with low operating costs.
The shell is available in high-quality stainless steel or powder-coated galvanized steel sheet to satisfy different customer requirements.
It is fitted with high-efficiency fans that deliver large air volume, long airflow range, low power consumption, low noise and long service life.
Highly insulated stainless steel U-shaped electric heating tubes are mounted inside the fins for stable defrosting performance.
All units pass strict air tightness test under 2.8 MPa before delivery, ensuring excellent sealing performance and reliable factory quality.
DT Series Air Cooler Technical Specifications |
Model |
Fan Dia. * Qty |
Motor Input Power (KW) |
Defrosting Power (KW) |
Inlet/Outlet Pipe (mm) |
SC1 (Fin Space: 4.5mm) Ta/Te 10°C/0°C DT/G(KW) |
SC2 (Fin Space: 4.5mm) Ta/Te 0°C/-10°C DT/G(KW) |
SC3 (Fin Space: 6mm) Ta/Te 0°C/-8°C DT(KW) |
SC4 (Fin Space: 6mm) Ta/Te -18°C/-25°C DT(KW) |
SC5 (Fin Space:6mm) Ta/Te -25°C/-31°C DT(KW) |
SC6 (Fin Space: 8mm) Ta/Te -25°C/-31°C DT/D(KW) |
DT15/G/D |
ø 350*1 |
0.18 |
1.65 |
12/22 |
3.6 |
3.1 |
2.1 |
1.5 |
1.2 |
1 |
DT20/G/D |
ø 400*1 |
0.23 |
2.2 |
12/22 |
5.7 |
5 |
3.2 |
2.4 |
2 |
1.8 |
DT25/G/D |
ø 350*2 |
0.36 |
2.7 |
12/22 |
6.2 |
5.3 |
3.5 |
2.6 |
2.1 |
1.9 |
DT30/G/D |
ø 450*1 |
0.455 |
2.2 |
12/22 |
6.5 |
6 |
4 |
3 |
2.5 |
2.2 |
DT33/G/D |
ø 350*2 |
0.36 |
2.7 |
12/22 |
7.9 |
6.7 |
4.6 |
3.3 |
2.7 |
2.3 |
DT40/G/D |
ø 400*2 |
0.46 |
4 |
16/25 |
10.4 |
9.1 |
5.9 |
4.5 |
3.8 |
3.4 |
DT60/G/D |
ø 450*2 |
0.91 |
5.6 |
19/32 |
15.8 |
13.4 |
9.2 |
6.6 |
5.5 |
4.9 |
DT80/G/D |
ø 500*2 |
0.92 |
7 |
19/35 |
19.6 |
16.6 |
11.4 |
8.3 |
6.8 |
6.2 |
DT100/G/D |
ø 500*3 |
1.38 |
8.5 |
19/35 |
28.3 |
24.7 |
15.9 |
12.4 |
10.3 |
9.3 |
DT120/G/D |
ø 500*3 |
1.38 |
9 |
19/35 |
31.1 |
26.9 |
17.6 |
13.4 |
11.1 |
10.1 |
DT140/G/D |
ø 500*4 |
1.84 |
10 |
22/38 |
38.1 |
32.6 |
22 |
16.3 |
13.4 |
12.3 |
DT160/G/D |
ø 500*4 |
1.84 |
12 |
22/50 |
41.8 |
35.8 |
24 |
17.8 |
14.6 |
13.4 |
DT200/G/D |
ø 500*4 |
1.84 |
12 |
22/50 |
55.7 |
45.1 |
30.7 |
23.6 |
18.6 |
17.2 |
Refrigerant Type Correction Factor | ||||
Refrigerant Type |
R404A |
R507A |
R22 |
R134a |
Correction Factor |
1 |
1 |
0.97 |
0.93 |
Evaporator is widely used in various large, medium, and small cold storage, food processing rooms, and logistics centers.
1-year warranty,technical support.
What type of company are you?
We are a professional integrated industrial and trading enterprise with an independent production factory and experienced R&D team, ensuring stable production capacity and continuous technical innovation.
What are your main products?
We specialize in refrigeration equipment, including cold storage air coolers, condensing units, condensers and other supporting refrigeration parts.
Can I customize my logo?
Yes, we support OEM and ODM services and can print customer logos on products.
Can you provide customized products?
Custom solutions are available. We can design and manufacture according to your technical parameters and actual demands. Providing design drawings will make customization more accurate.
How do you guarantee product quality?
We provide pre-production samples before mass production. Every product will undergo strict final inspection and professional machine testing before delivery to ensure reliable quality.
