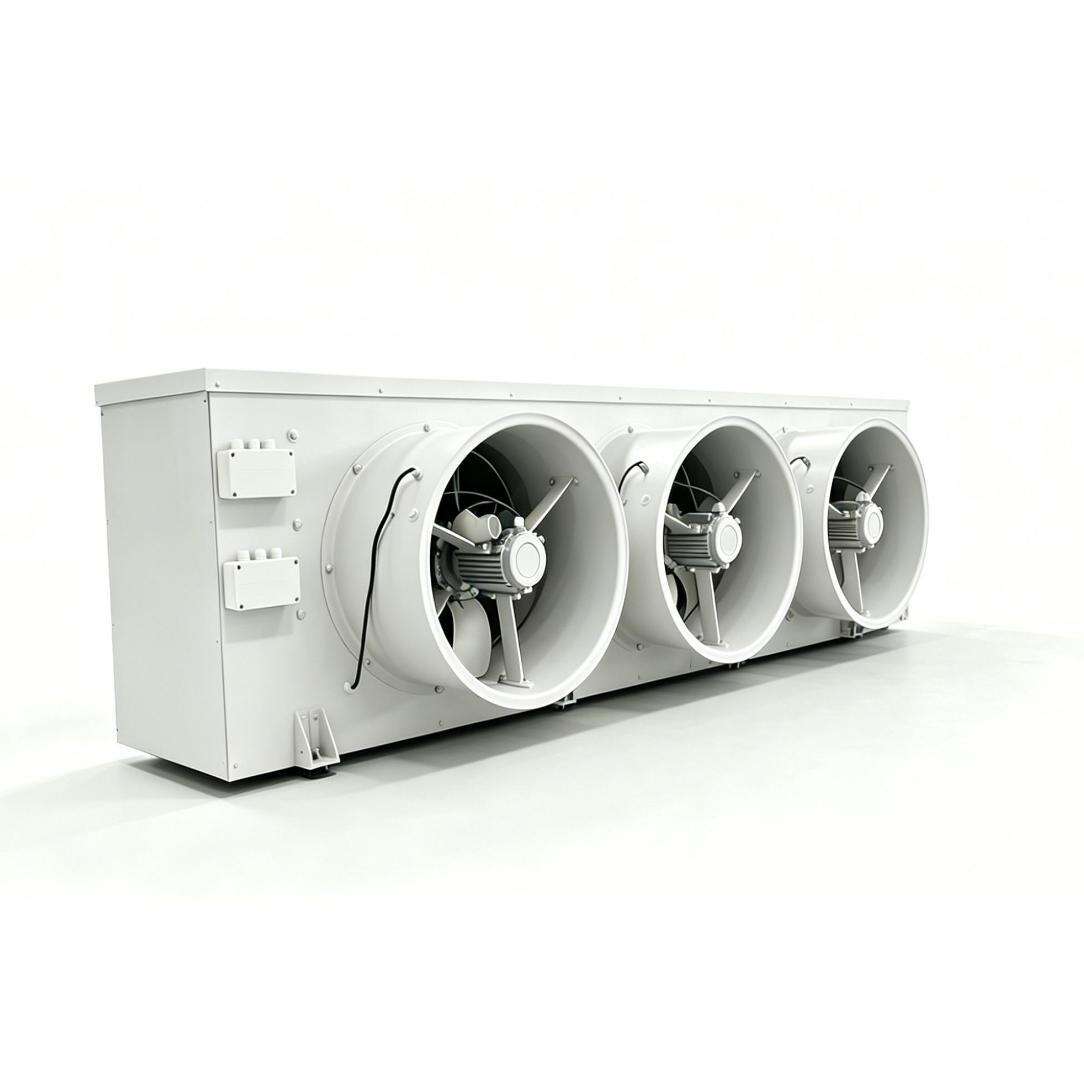

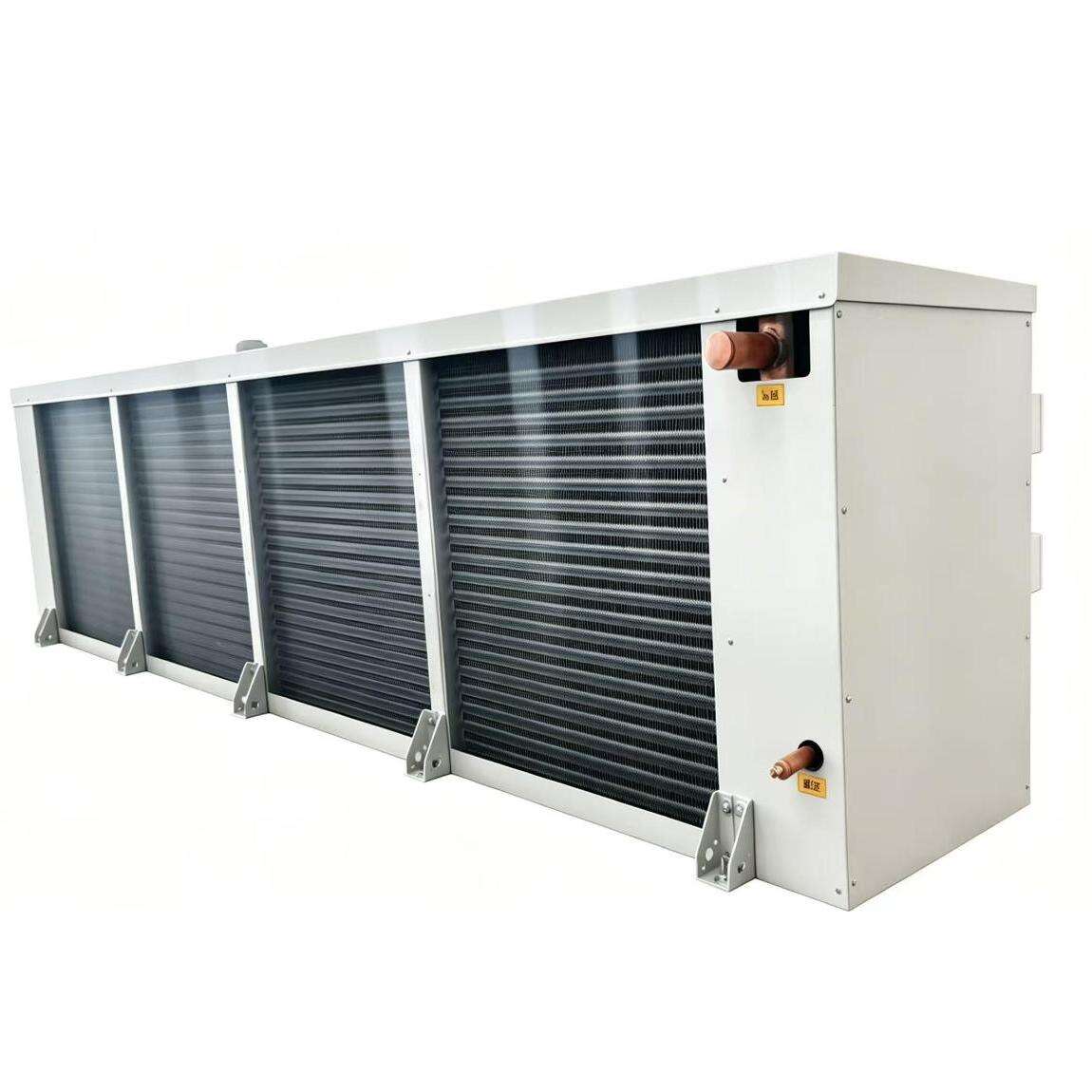

DD350 Air Cooler Evaporator

Air coolers are suitable for cooling equipment in various large, medium, and small cold storage, food processing rooms, and logistics centers for storing fresh and frozen products.

Parameters of DD Series Air Coolers

Model	DD350
Product Origin	China
Material	Aluminum Alloy, Copper, iron
Fan quantity	4

Product video

Company Profile

Ningbo Lucky Star Import & Export Co., Ltd. is a technology-oriented enterprise dedicated to the development and manufacturing of a full range of cold storage equipment. With over two decades of production and R&D experience, our product line includes finned tube evaporators, air-cooled condensers, and condensing units. We have a professional, dedicated, and customer-oriented team. Relying on a strong supply chain, we can provide you with a full range of accessory products. Adhering to the pursuit of quality, our factory has successively introduced a series of advanced production equipment such as laser cutting machines, CNC turret punch presses, and high-speed automatic punch presses, and has established a complete quality management system, providing an important guarantee for the stability and durability of our products. We are well aware that high-quality service is the key to the continuous development of an enterprise. We strive to improve our service system to ensure customer peace of mind. During the sales process, we offer professional pre-sale consultation, efficient production and logistics services, as well as timely and continuous after-sales technical support. We are reliable suppliers of refrigeration equipment. We look forward to more cooperation with customers at home and abroad.

Advantages

Reasonable structure, high heat transfer efficiency, uniform frosting, energy-saving, and low operating costs
The shell is made of high-quality stainless steel and spray painted, meet the needs of different customers
High efficiency fan with large air volume, long range, low power consumption, low noise, and long service life
Adopting highly insulating stainless steel U-shaped tubular electric heating tubes, the electric heating tubes are placed inside the fins
The air cooler undergoes an air tightness test at a pressure of 2.8 MPa to ensure that the product has high air tightness quality characteristics when it leaves the factory

Applications

Evaporator is widely used in various large, medium, and small cold storage, food processing rooms, and logistics centers.

Service & Support

1-year warranty,technical support.

Parameters of Evaporative Air Cooler Cold

Unit	Model	HG28	HG34	HG54	HG68	HG77	HG101
SC1 refrigeration capacity 0°C	kw	5.9	7.1	13.8	15.2	16.3	23.5
SC2 refrigeration capacity -8°C	kw	3.9	4.7	8.9	8.9	9.5	13.1
SC3 refrigeration capacity -25°C	kw	2.8	3.4	6.7	6.5	6.9	9.4
SC4 refrigeration capacity -31°C	kw	2.2	2.6	5.4	4.4	4.6	6.6
Fan Diameter × Quantity	mm×pcs	300×2	300×2	400×2	400×2	400×2	400×3
Fan electric system	V/Hz	380/50	380/50	380/50	380/50	380/55	380/50
Fan power (quantity)	W×pcs	100×2	100×2	200×2	200×2	200×2	200×3
Electric heating system	V/Hz	220/50	220/50	220/50	220/50	220/55	220/50
Electric heating power	kw	2.5	3.6	4.0	5.5	5.5	6.5
Diameter of liquid supply pipe	mm	12	16	16	16	16	16
Return pipe diameter	mm	22	22	25	28	28	35

Unit	Model	HG121	HG143	HG168	HG202	HG221	HG269	HG316
SC1 refrigeration capacity 0°C	kw	30.1	31.9	43.2	46.5	52.6	64.5	69.3
SC2 refrigeration capacity -8°C	kw	17.1	18.1	21.8	27.4	31.0	38.2	41.5
SC3 refrigeration capacity -25°C	kw	12.7	13.3	18.4	19.9	22.5	28.1	30.1
SC4 refrigeration capacity -31°C	kw	8.1	8.6	12.3	13.6	15.5	19.6	21.0
Fan Diameter × Quantity	mm×pcs	450×3	450×3	500×3	500×3	550×3	600×3	600×3
Fan electric system	V/Hz	380/50	380/50	380/50	380/50	380/55	380/50	380/50
Fan power (quantity)	W×pcs	260×3	260×3	480×3	480×3	750×3	1100×3	1500×3
Electric heating system	V/Hz	220/50	220/50	220/50	220/50	220/55	220/50	220/50
Electric heating power	kw	7.0	9.0	10.2	11.4	15.2	16.0	18.0
Diameter of liquid supply pipe	mm	16	19	19	19	22	22	22
Return pipe diameter	mm	35	35	35	35	42	50	50

Successfull cold storage case

chicken cold room.jpg flowers cold room.jpg fruit cold room.jpg meat cold room.jpg sausage cold room.jpg sea food cold room.jpg

Logistics transportation

Logistics transportation (1).jpg Logistics transportation (2).jpg Logistics transportation (3).jpg Logistics transportation (4).jpg Logistics transportation.jpg Logistics transportation (6).jpg Logistics transportation (7).jpg Logistics transportation (8).jpg

Exhibition

Exhibition (1).jpg Exhibition (2).jpg Exhibition (3).jpg Exhibition (4).jpg Exhibition (5).jpg Exhibition (7).jpg Exhibition (8).jpg Exhibition (9).jpg Exhibition (10).jpg

Why Choose Us

Strength factory
Dust-free workshop with clean environment to ensure quality
Provide customers with overall customization services from R&D, design to production.
OEM/ODM
We can work out customized drawings in short time!
Quality control
Multiple quality testing, quality assurance
On-time delivery
Work with multiple multinational logistics companies to ensure fast/safe delivery of products.

FAQ

What type of company is it?
Our company is a comprehensive industrial and trade enterprise. We have our own factory, R&D team.
What are your company's main products?
Our main products: air-cooler,condensing unit,condensor,etc.
Can I put my logo?
Of course. we accept OEM and ODM.
Can you customize the product according to our specific requirements?
As long as you provide specific information, we can offer specific solutions. It would be better if you could provide the design drawings.
How can we guarantee quality?
Always a pre-production sample before mass production,always final Inspection and passed machine testing before shipment.
