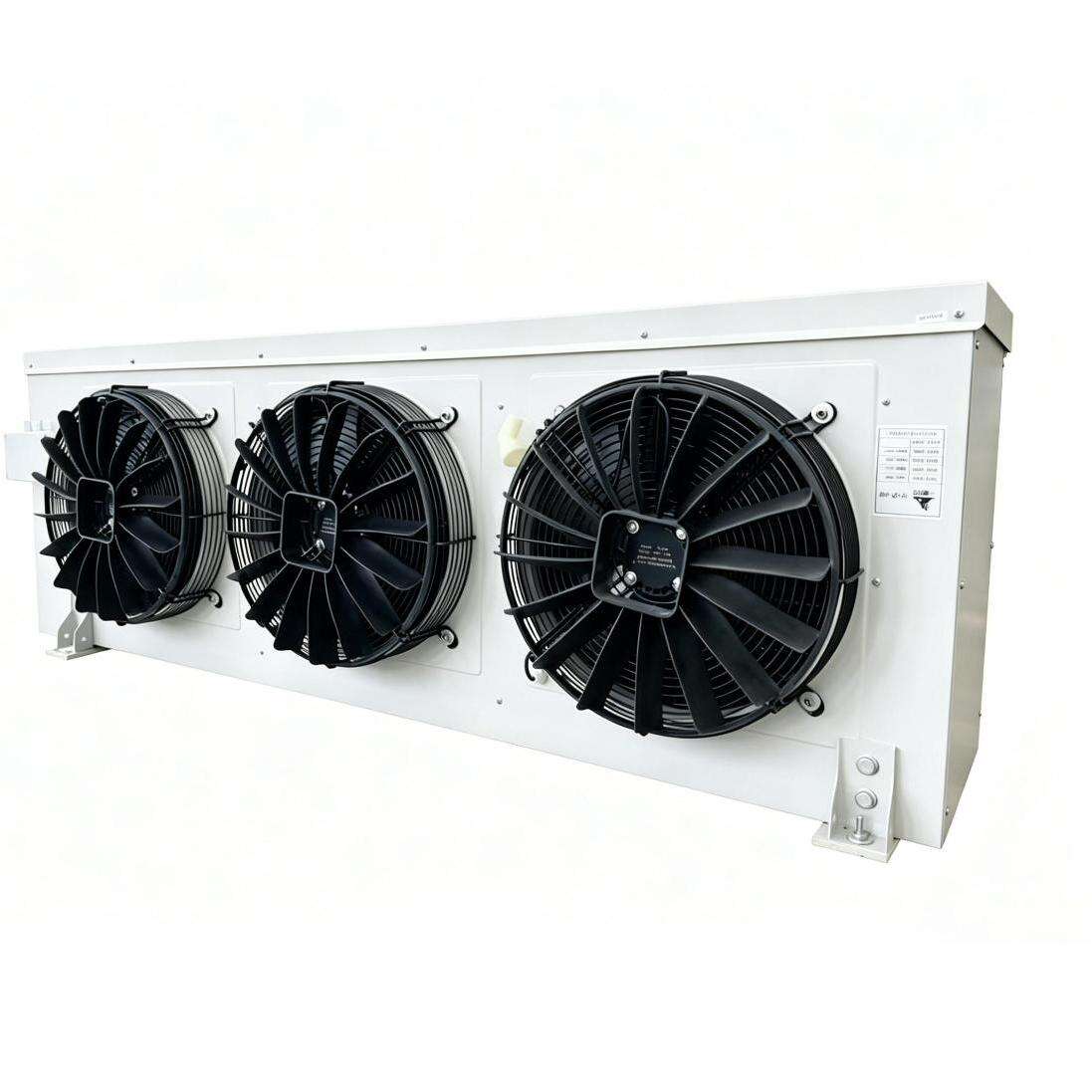

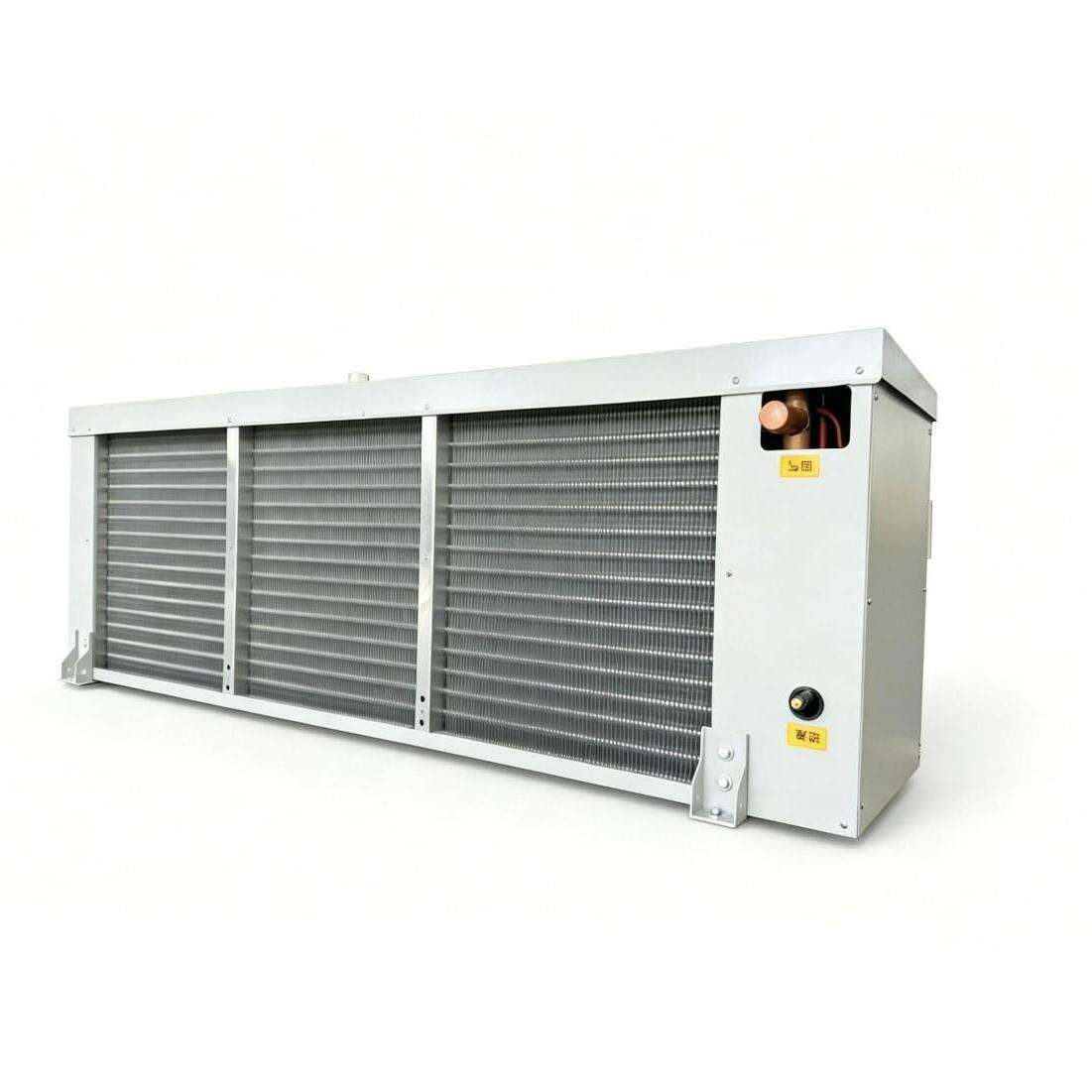

HG101 Air Cooler Evaporator

Air coolers are suitable for cooling equipment in various large, medium, and small cold storage, food processing rooms, and logistics centers for storing fresh and frozen products.

Parameters of HG Series Air Coolers

Model	HG101
Product Origin	China
Material	Aluminum Alloy, Copper, iron
Fan quantity	3
Fan diameter	400mm
Fan power	0.62KW
Defrosting power	6.5KW

Product video

Company Profile

Ningbo Lucky Star Import & Export Co., Ltd. is a technology-oriented enterprise dedicated to the development and manufacturing of a full range of cold storage equipment. With over two decades of production and R&D experience, our product line includes finned tube evaporators, air-cooled condensers, and condensing units. We have a professional, dedicated, and customer-oriented team. Relying on a strong supply chain, we can provide you with a full range of accessory products. Adhering to the pursuit of quality, our factory has successively introduced a series of advanced production equipment such as laser cutting machines, CNC turret punch presses, and high-speed automatic punch presses, and has established a complete quality management system, providing an important guarantee for the stability and durability of our products. We are well aware that high-quality service is the key to the continuous development of an enterprise. We strive to improve our service system to ensure customer peace of mind. During the sales process, we offer professional pre-sale consultation, efficient production and logistics services, as well as timely and continuous after-sales technical support. We are reliable suppliers of refrigeration equipment. We look forward to more cooperation with customers at home and abroad.

Advantages

Reasonable structure, high heat transfer efficiency, uniform frosting, energy-saving, and low operating costs
The shell is made of high-quality stainless steel and spray painted, meet the needs of different customers
High efficiency fan with large air volume, long range, low power consumption, low noise, and long service life
Adopting highly insulating stainless steel U-shaped tubular electric heating tubes, the electric heating tubes are placed inside the fins
The air cooler undergoes an air tightness test at a pressure of 2.8 MPa to ensure that the product has high air tightness quality characteristics when it leaves the factory

Applications

Evaporator is widely used in various large, medium, and small cold storage, food processing rooms, and logistics centers.

Service & Support

1-year warranty,technical support.

Parameters of HG Series Air Coolers

Unit	HG28	HG34	HG54	HG68	HG77	HG101
SC1 refrigeration capacity 0°C (kW)	5.9	7.1	13.8	15.2	16.3	23.5
SC2 refrigeration capacity -8°C (kW)	3.9	4.7	8.9	8.9	9.5	13.1
SC3 refrigeration capacity -25°C (kW)	2.8	3.4	6.7	6.5	6.9	9.4
SC4 refrigeration capacity -31°C (kW)	2.2	2.6	5.4	4.4	4.6	6.6
Fan Diameter × Quantity (mm×pcs)	300×2	300×2	400×2	400×2	400×2	400×3
Fan electric system (V/Hz)	380/50	380/50	380/50	380/50	380/50	380/50
Fan power × quantity (W×pcs)	100×2	100×2	200×2	200×2	200×2	200×3
Electric heating system (V/Hz)	220/50	220/50	220/50	220/50	220/50	220/50
Electric heating power (kW)	2.5	3.6	4	5.5	5.5	6.5
Diameter of liquid supply pipe (mm)	12	16	16	16	16	16
Return pipe diameter (mm)	22	22	25	28	28	35

Unit	HG121	HG143	HG168	HG202	HG221	HG269	HG316
SC1 refrigeration capacity 0°C (kW)	30.1	31.9	43.2	46.5	52.6	64.5	69.3
SC2 refrigeration capacity -8°C (kW)	17.1	18.1	21.8	27.4	31	38.2	41.5
SC3 refrigeration capacity -25°C (kW)	12.7	13.3	18.4	19.9	22.5	28.1	30.1
SC4 refrigeration capacity -31°C (kW)	8.1	8.6	12.3	13.6	15.5	19.6	21
Fan Diameter × Quantity (mm×pcs)	450×3	450×3	500×3	500×3	550×3	600×3	600×3
Fan electric system (V/Hz)	380/50	380/50	380/50	380/50	380/50	380/50	380/50
Fan power × quantity (W×pcs)	260×3	260×3	480×3	480×3	750×3	1100×3	1500×3
Electric heating system (V/Hz)	220/50	220/50	220/50	220/50	220/50	220/50	220/50
Electric heating power (kW)	7	9	10.2	11.4	15.2	16	18
Diameter of liquid supply pipe (mm)	16	19	19	19	22	22	22
Return pipe diameter (mm)	35	35	35	35	42	50	50
