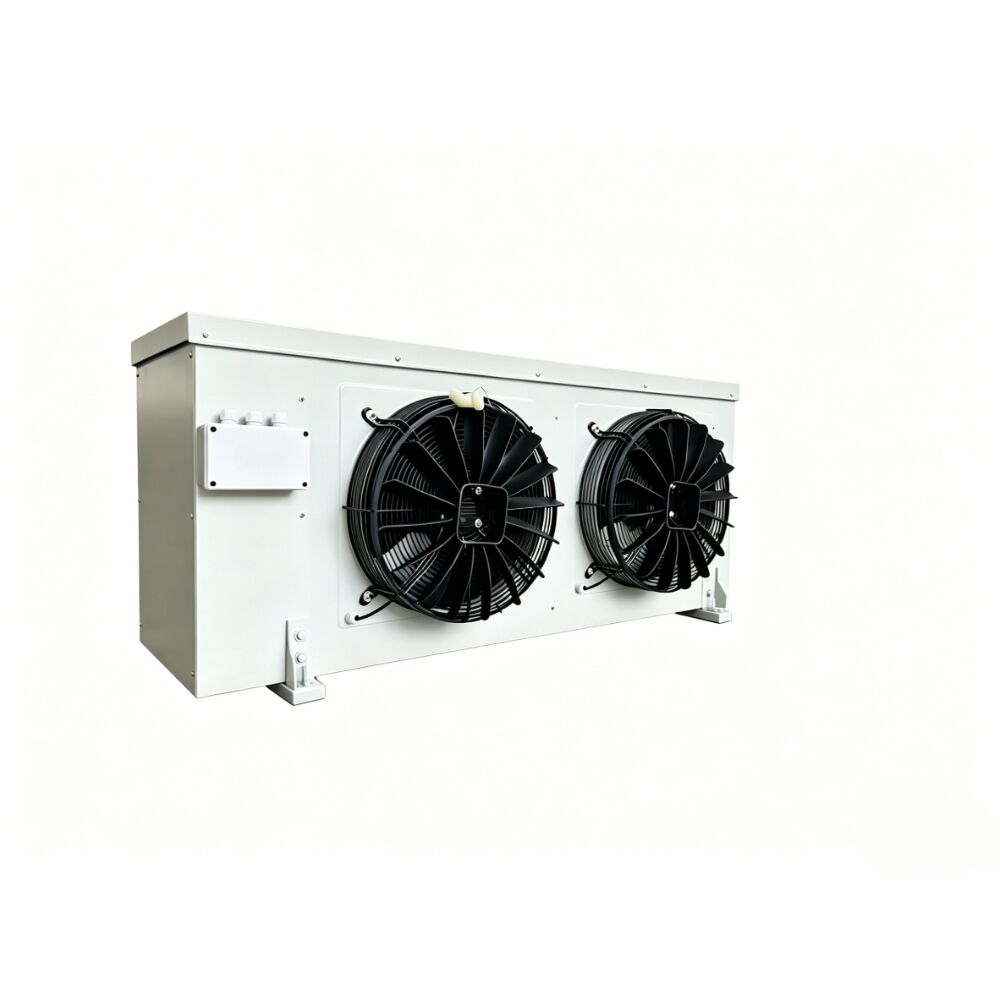

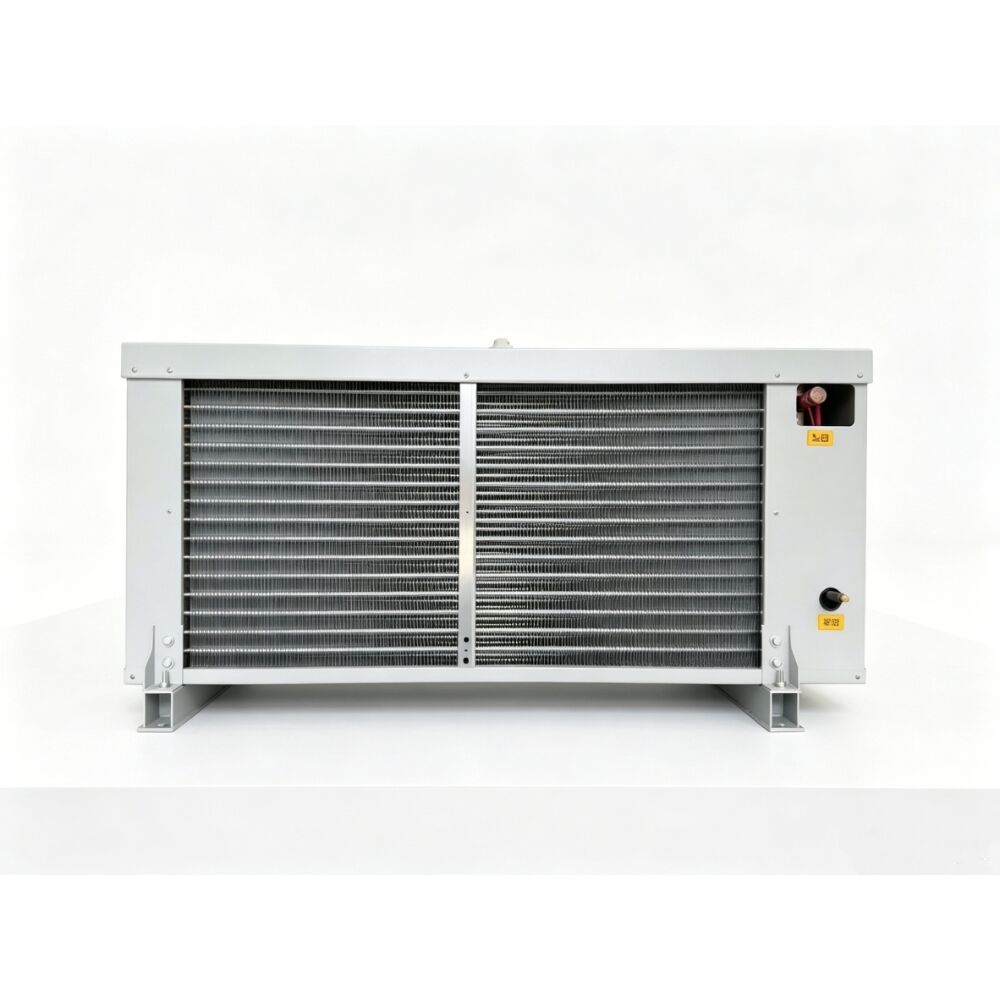

HG77 Air Cooler Evaporator

Cold storage air coolers use forced convection, with evaporator coils and fans to absorb heat from the air inside cold rooms. This process lowers and maintains a low-temperature environment. They are available in various configurations for different cooling capacities, suitable for cold storage, food processing rooms, and logistics centers storing fresh and frozen products. Designed for reliable operation in cold chain systems, they are a key component in refrigeration setups.

Parameters of HG77 Air Cooler Evaporator

Parameter	Specification
Model	HG77
Product Origin	China
Material	Aluminum Alloy, Copper, Iron
Fan Quantity	2
Fan Diameter	400 mm
Fan Power	0.41 KW
Defrosting Power	5.5 KW

Product video

Company Profile

Ningbo Lucky Star Import & Export Co., Ltd. is a technology-oriented enterprise dedicated to the development and manufacturing of a full range of cold storage equipment. With over two decades of production and R&D experience, our product line includes finned tube evaporators, air-cooled condensers, and condensing units. We have a professional, dedicated, and customer-oriented team. Relying on a strong supply chain, we can provide you with a full range of accessory products. Adhering to the pursuit of quality, our factory has successively introduced a series of advanced production equipment such as laser cutting machines, CNC turret punch presses, and high-speed automatic punch presses, and has established a complete quality management system, providing an important guarantee for the stability and durability of our products. We are well aware that high-quality service is the key to the continuous development of an enterprise. We strive to improve our service system to ensure customer peace of mind. During the sales process, we offer professional pre-sale consultation, efficient production and logistics services, as well as timely and continuous after-sales technical support. We are reliable suppliers of refrigeration equipment. We look forward to more cooperation with customers at home and abroad.

Core advantages

Reasonable overall structure brings high heat transfer efficiency and uniform frosting. The product is energy-saving with low operating costs.

The shell is available in high-quality stainless steel or powder-coated galvanized steel sheet to satisfy different customer requirements.

It is fitted with high-efficiency fans that deliver large air volume, long airflow range, low power consumption, low noise and long service life.

Highly insulated stainless steel U-shaped electric heating tubes are mounted inside the fins for stable defrosting performance.

All units pass strict air tightness test under 2.8 MPa before delivery, ensuring excellent sealing performance and reliable factory quality.

Parameters of HG Series Air Coolers

Unit	Model	HG28	HG34	HG54	HG68	HG77	HG101
SC1 refrigeration capacity 0°C	kw	5.9	7.1	13.8	15.2	16.3	23.5
SC2 refrigeration capacity -8°C	kw	3.9	4.7	8.9	8.9	9.5	13.1
SC3 refrigeration capacity -25°C	kw	2.8	3.4	6.7	6.5	6.9	9.4
SC4 refrigeration capacity -31°C	kw	2.2	2.6	5.4	4.4	4.6	6.6
Fan Diameter × Quantity	mm×pcs	300×2	300×2	400×2	400×2	400×2	400×3
Fan electric system	V/Hz	380/50	380/50	380/50	380/50	380/55	380/50
Fan power (quantity)	W×pcs	100×2	100×2	200×2	200×2	200×2	200×3
Electric heating system	V/Hz	220/50	220/50	220/50	220/50	220/55	220/50
Electric heating power	kw	2.5	3.6	4.0	5.5	5.5	6.5
Diameter of liquid supply pipe	mm	12	16	16	16	16	16
Return pipe diameter	mm	22	22	25	28	28	35

Unit	Model	HG121	HG143	HG168	HG202	HG221	HG269	HG316
SC1 refrigeration capacity 0°C	kw	30.1	31.9	43.2	46.5	52.6	64.5	69.3
SC2 refrigeration capacity -8°C	kw	17.1	18.1	21.8	27.4	31.0	38.2	41.5
SC3 refrigeration capacity -25°C	kw	12.7	13.3	18.4	19.9	22.5	28.1	30.1
SC4 refrigeration capacity -31°C	kw	8.1	8.6	12.3	13.6	15.5	19.6	21.0
Fan Diameter × Quantity	mm×pcs	450×3	450×3	500×3	500×3	550×3	600×3	600×3
Fan electric system	V/Hz	380/50	380/50	380/50	380/50	380/55	380/50	380/50
Fan power (quantity)	W×pcs	260×3	260×3	480×3	480×3	750×3	1100×3	1500×3
Electric heating system	V/Hz	220/50	220/50	220/50	220/50	220/55	220/50	220/50
Electric heating power	kw	7.0	9.0	10.2	11.4	15.2	16.0	18.0
Diameter of liquid supply pipe	mm	16	19	19	19	22	22	22
Return pipe diameter	mm	35	35	35	35	42	50	50

Product image

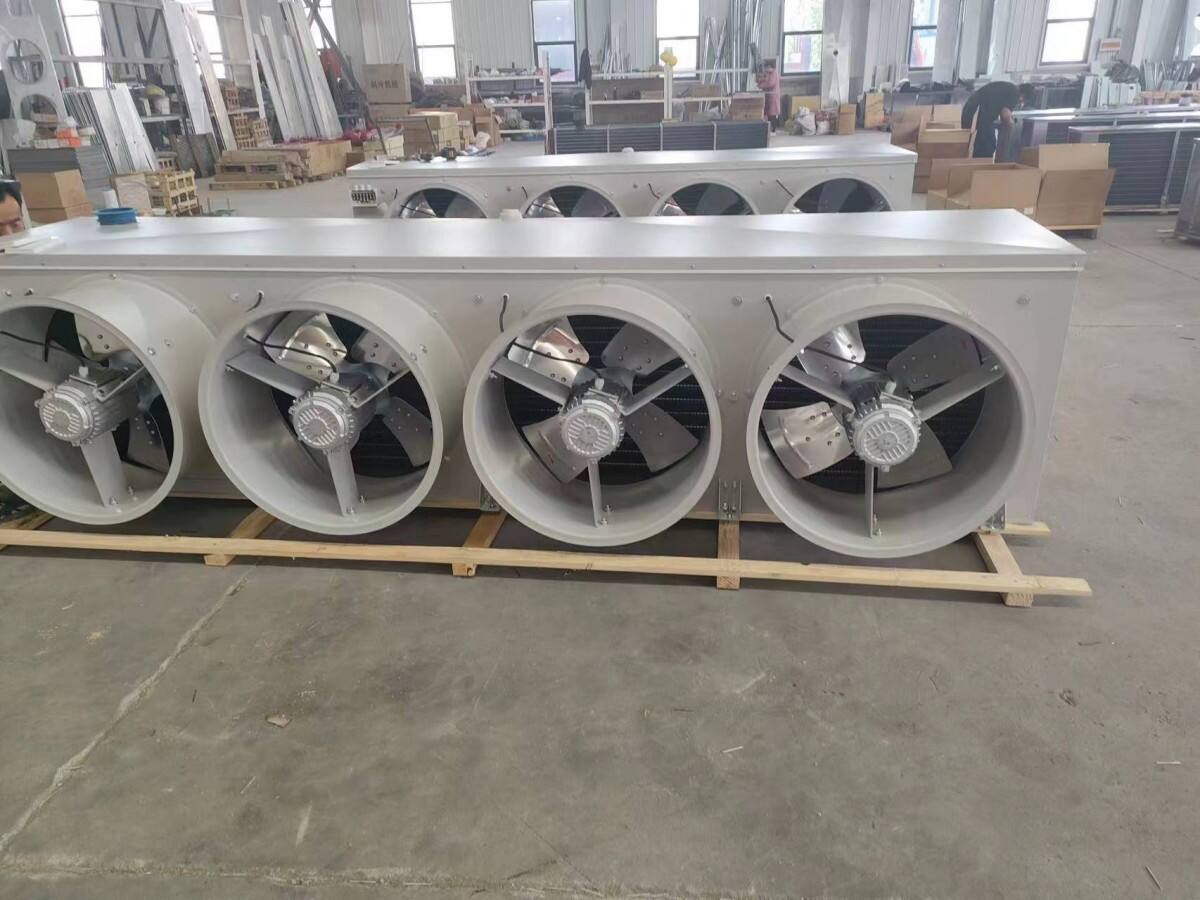

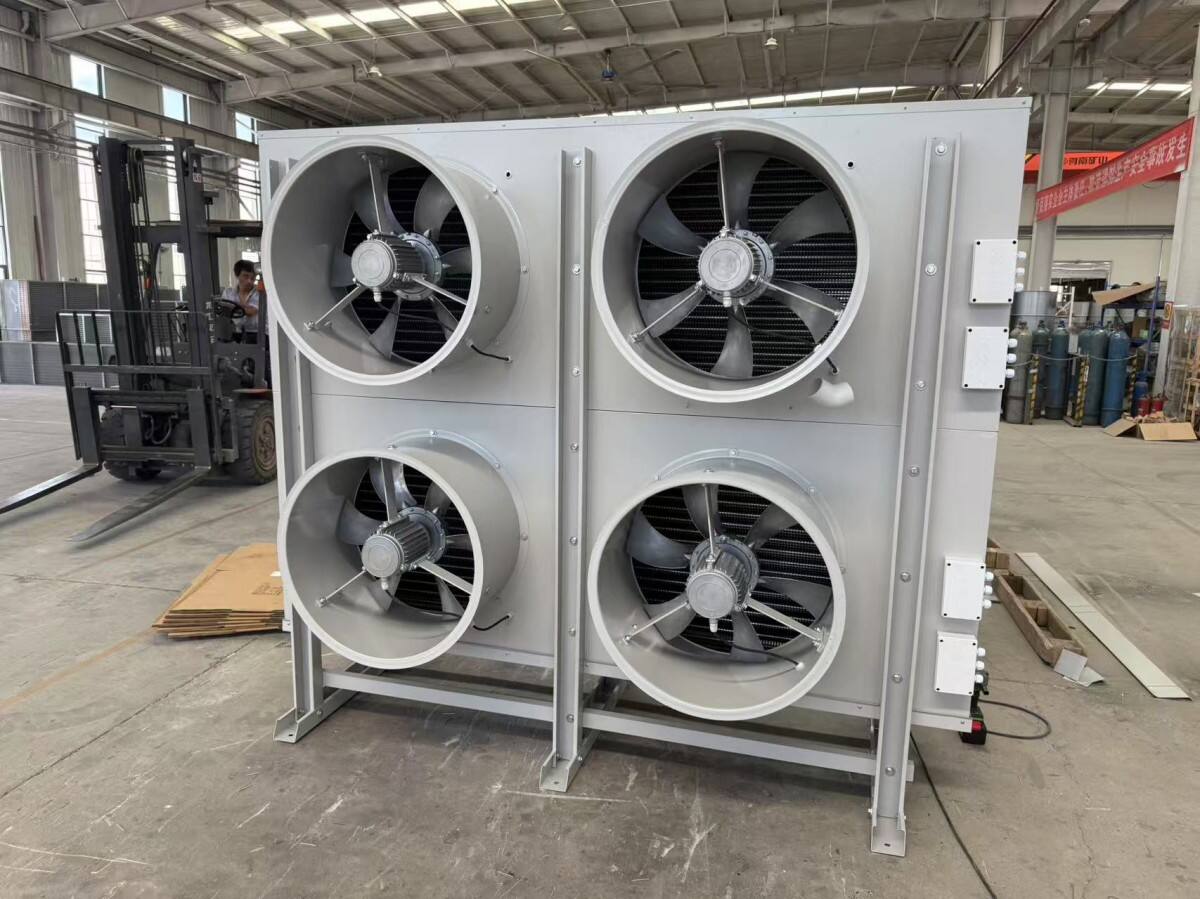

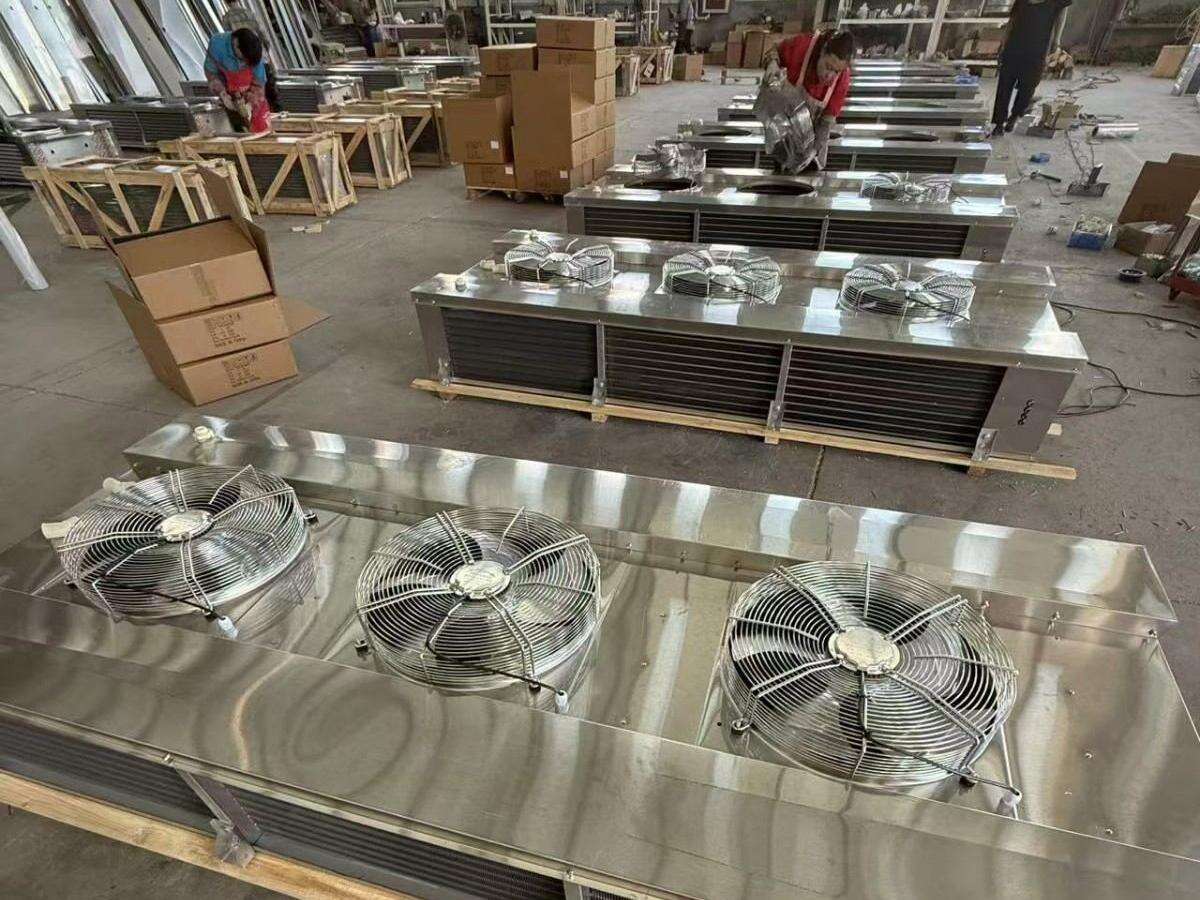

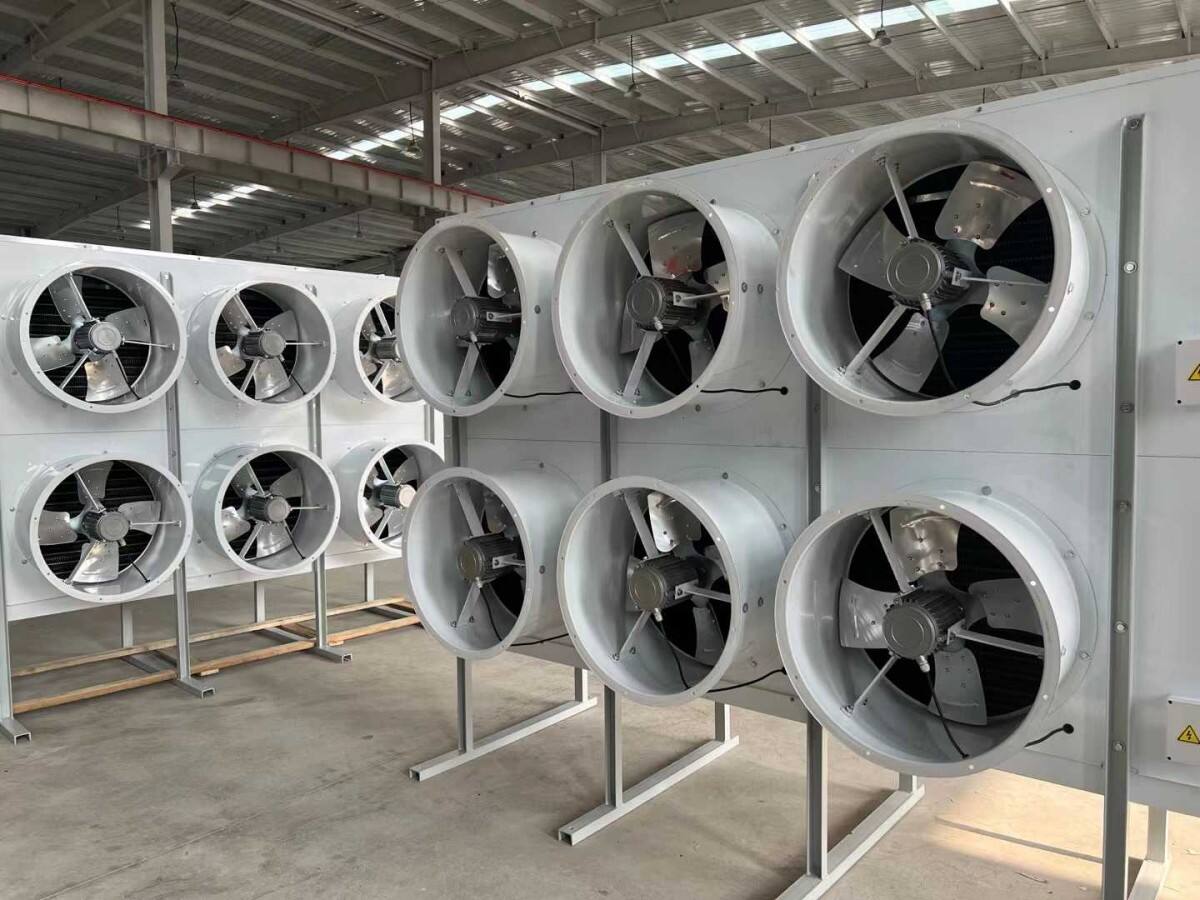

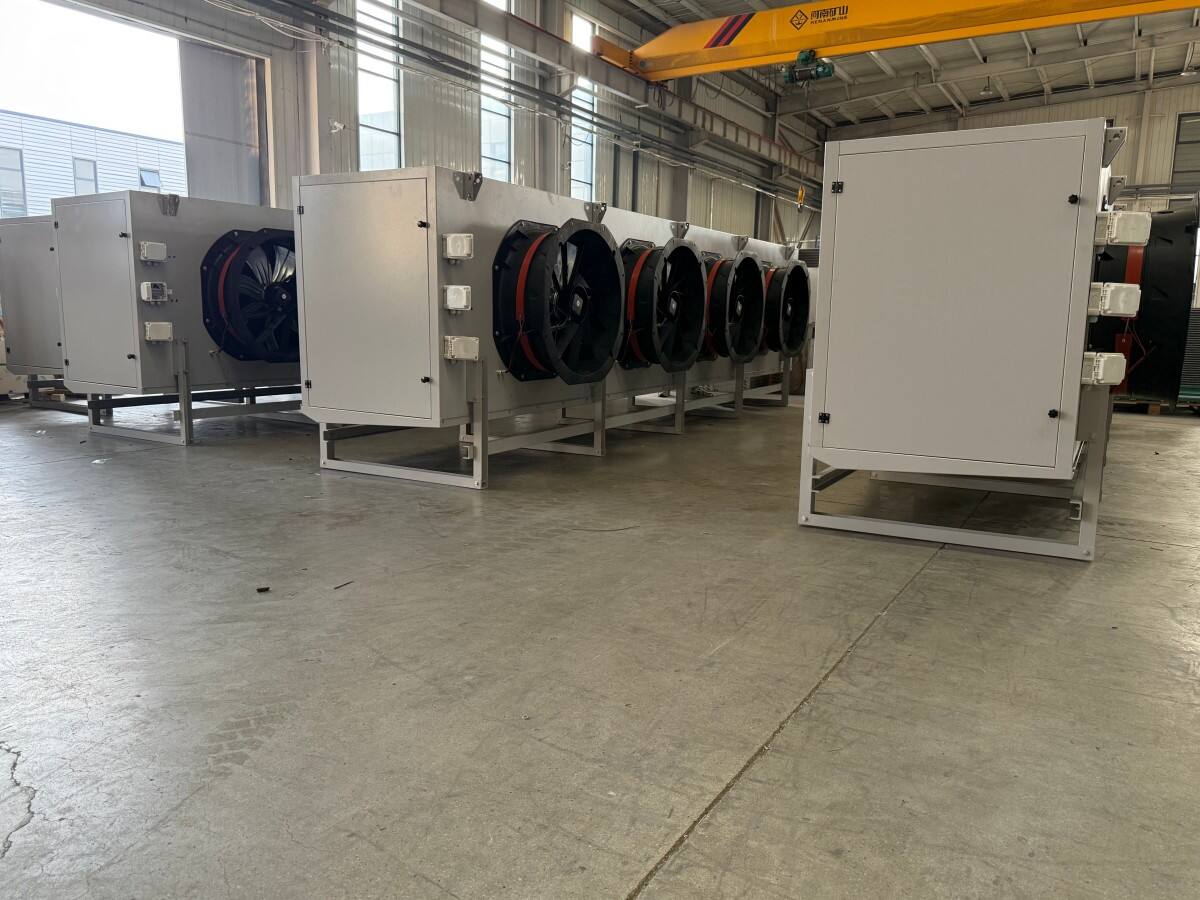

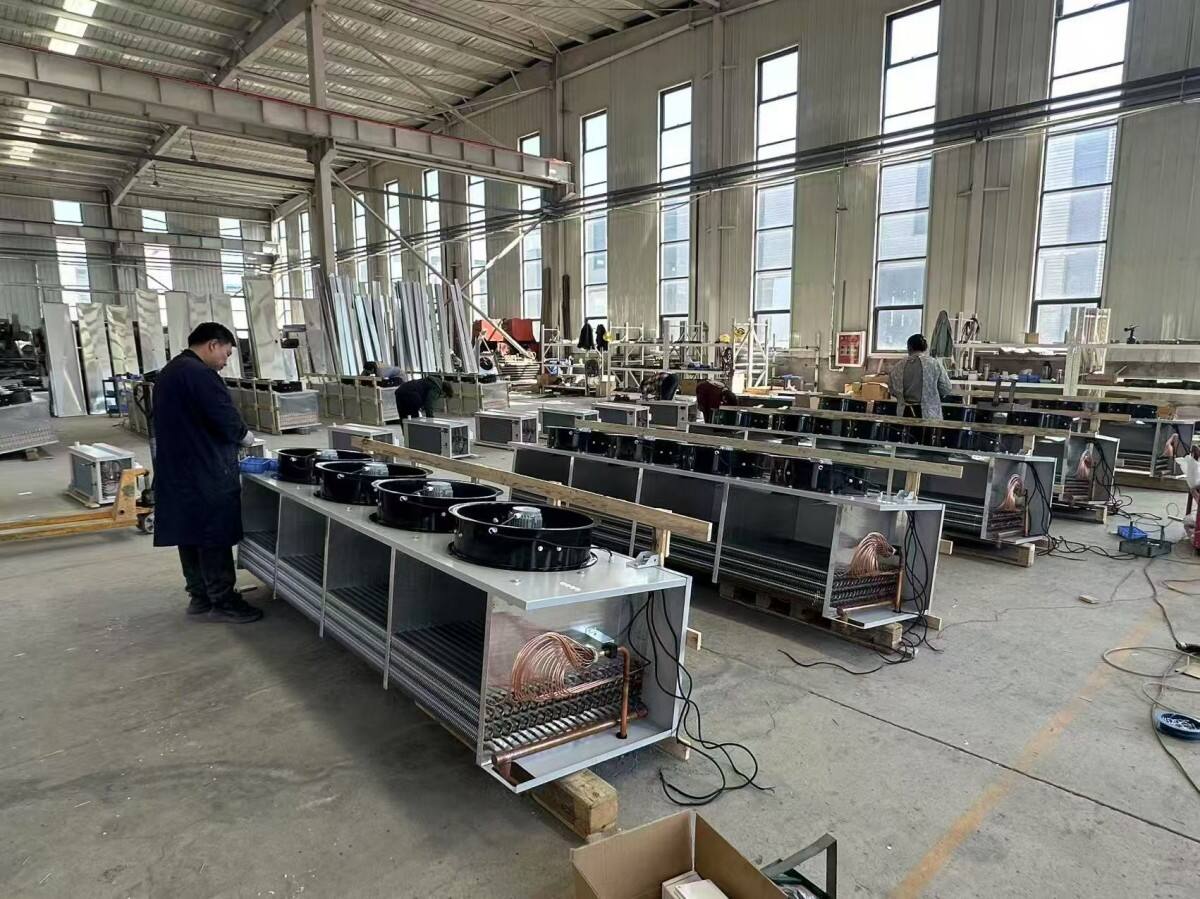

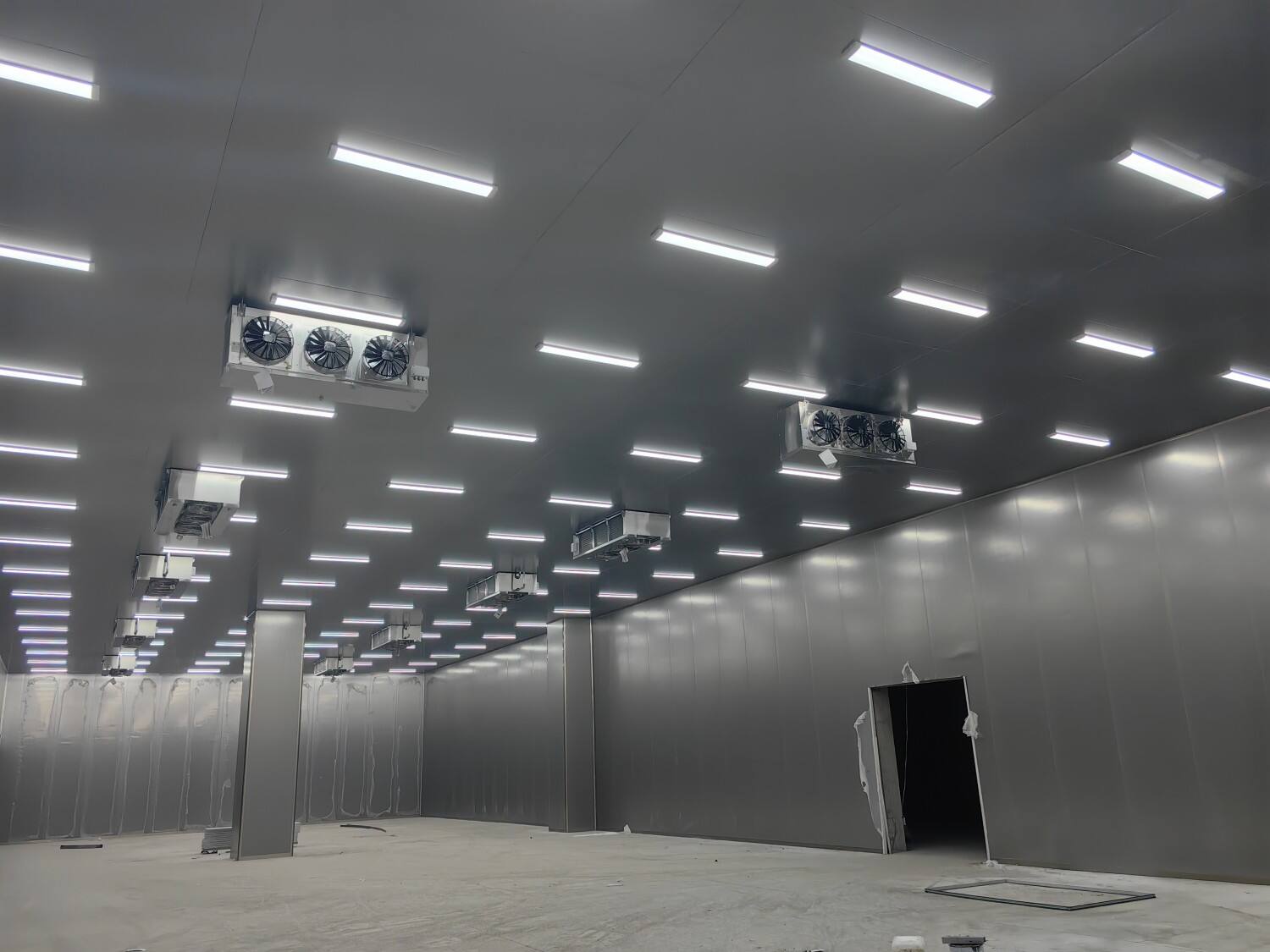

Evaporator (1).jpg Evaporator (2).jpg Evaporator (3).jpg Evaporator (4).jpg Evaporator (5).jpg Evaporator (6).jpg Installation image.jpg

Successfull cold storage case

chicken cold room.jpg flowers cold room.jpg fruit cold room.jpg meat cold room.jpg sausage cold room.jpg sea food cold room.jpg

Logistics transportation

Logistics transportation (1).jpg Logistics transportation (2).jpg Logistics transportation (3).jpg Logistics transportation (4).jpg Logistics transportation.jpg Logistics transportation (6).jpg Logistics transportation (7).jpg Logistics transportation (8).jpg

Exhibition

Exhibition (1).jpg Exhibition (2).jpg Exhibition (3).jpg Exhibition (4).jpg Exhibition (5).jpg Exhibition (7).jpg Exhibition (8).jpg Exhibition (9).jpg Exhibition (10).jpg

Application scenario

Evaporator is widely used in various large, medium, and small cold storage, food processing rooms, and logistics centers.

Service and support

1-year warranty,technical support.

FAQs

What type of company are you?

We are a professional integrated industrial and trading enterprise with an independent production factory and experienced R&D team, ensuring stable production capacity and continuous technical innovation.

What are your main products?

We specialize in refrigeration equipment, including cold storage air coolers, condensing units, condensers and other supporting refrigeration parts.

Can I customize my logo?

Yes, we support OEM and ODM services and can print customer logos on products.

Can you provide customized products?

Custom solutions are available. We can design and manufacture according to your technical parameters and actual demands. Providing design drawings will make customization more accurate.

How do you guarantee product quality?

We provide pre-production samples before mass production. Every product will undergo strict final inspection and professional machine testing before delivery to ensure reliable quality.
